Why Choose the Ilme CX7MA16 Male 70 A Crimp Contact?

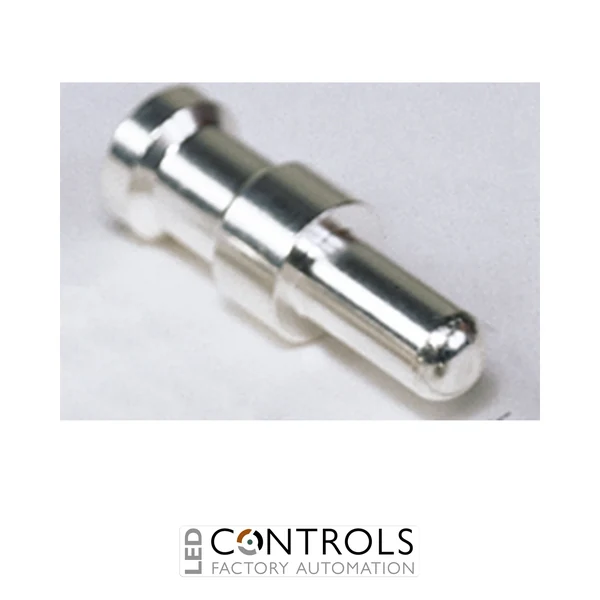

The Ilme CX7MA16 is a high-current male crimp contact designed for reliable electrical connections in heavy-duty industrial connector systems. Part of the Ilme CX7 contact series, it features a precision-turned, silver-plated contact and is engineered for demanding power connections in industrial machinery, automation equipment and control systems.
Designed for conductors with a cross-sectional area of 16 mm², the CX7MA16 provides a secure crimp termination with a rated current of 70 A. Its copper-alloy construction and silver-plated contact surface provide excellent electrical conductivity, low contact resistance and dependable performance where high-current industrial connections are required.
The CX7MA16 accommodates 16 mm² conductors in the AWG 6–5 range and requires a conductor stripping length of 15 mm. With a specified contact resistance of no more than 0.5 mΩ and mechanical durability of at least 500 mating cycles, it provides a robust connection solution for compatible Ilme heavy-duty connector assemblies.
Key Advantages
- High-current male crimp contact rated at 70 A.
- Designed specifically for 16 mm² conductors.
- Precision turned silver-plated contact for dependable electrical performance.
- Low contact resistance of ≤0.5 mΩ.
- Mechanical durability of at least 500 mating cycles.
- Wide operating temperature range for demanding industrial environments.
Key Features
- Ilme CX7 series male power contact.
- 70 A rated current.
- 16 mm² wire cross-section.
- Suitable for AWG 6–5 conductors.
- Crimp termination for secure conductor attachment.
- Precision turned contact construction.
- Silver-plated contact surface.
- Copper-alloy main construction material.
- 15 mm conductor stripping length.
- Operating temperature range of -40 °C to +125 °C.
Reliable High-Current Connectivity for Industrial Machinery
Crimp contacts such as the Ilme CX7MA16 provide a mechanically secure and electrically efficient method of terminating power conductors within heavy-duty industrial connector assemblies. Correct crimping creates a robust connection between the conductor and contact, helping maintain dependable electrical performance in machinery exposed to vibration, repeated connection cycles and demanding operating conditions.
With its 70 A current rating, 16 mm² conductor capacity and silver-plated contact surface, the CX7MA16 is particularly well suited to higher-power industrial connections. Its low contact resistance and rated durability of at least 500 mating cycles make it suitable for machine building, factory automation and other applications requiring dependable, serviceable power connections.
Typical Applications
- Heavy-duty industrial connector assemblies.
- Industrial machinery and production equipment.
- Motor and high-current power connections.
- Factory automation and control systems.
- Material handling and conveyor equipment.
- OEM machine building and modular power distribution.
