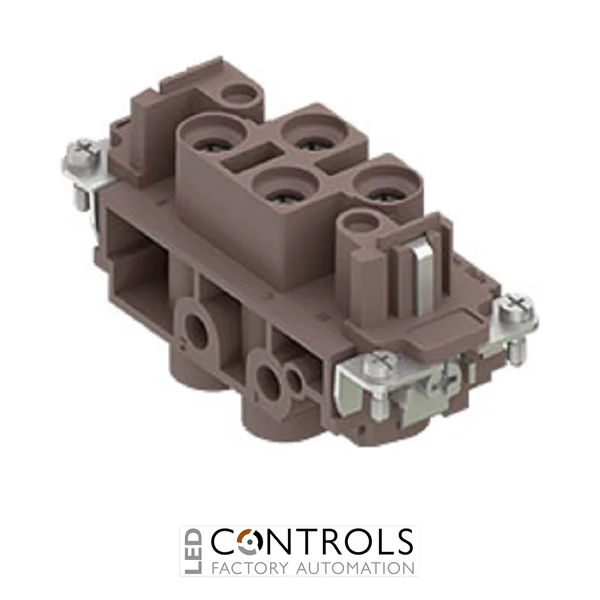

Ilme CXF4/2RY is a female Ryton PPS heavy-duty connector insert with 4 power poles plus PE rated at 80 A and 2 auxiliary poles rated at 16 A with screw termination.
SKU:CXF4/2RYAlt SKU:CXF4/2RYMPN:CXF 4/2 RY
Price
List Price£34.65ex VAT
Your Price (ex VAT)
£34.65
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the Ilme CXF4/2RY Female Ryton Connector Insert?
The Ilme CXF4/2RY is a heavy-duty female multipole connector insert designed to combine high-current power and auxiliary circuits within a single industrial connector assembly. Part of the ILME CX range, it provides 4 power poles plus protective earth rated at 80 A together with 2 auxiliary poles rated at 16 A, making it suitable for machinery requiring power and control connections through one detachable interface.
The CXF4/2RY features screw terminal connections for straightforward and secure conductor termination. Its key distinction is the use of a Ryton (PPS) insulating body, a high-performance engineering material selected for demanding industrial applications where enhanced resistance to elevated temperatures and challenging environmental conditions is required.
With its combination of high-current contacts, auxiliary connections and robust Ryton construction, the CXF4/2RY provides a compact solution for motors, production machinery and industrial automation equipment. The insert is designed to mate with the corresponding compatible male insert and to be installed within an appropriately sized ILME heavy-duty connector hood or housing.
Key Advantages
Combines 4 high-current power poles, PE and 2 auxiliary poles within one insert.
Main power circuit rated at 80 A.
Two auxiliary contacts rated at 16 A.
Ryton (PPS) insulating body for demanding industrial environments.
Screw terminal connections allow direct conductor termination.
Female insert configuration for mating with the corresponding ILME male connector insert.
Allows power and auxiliary circuits to be connected and disconnected simultaneously.
Key Features
ILME CX series female insert.
4 power poles + PE + 2 auxiliary poles.
80 A main contact rating.
16 A auxiliary contact rating.
Screw termination for power and auxiliary conductors.
High-performance Ryton (PPS) insulating material.
Designed for heavy-duty industrial power and control connections.
Suitable for compatible ILME hoods and housings.
Reliable Combined Power and Control Connectivity
Connector inserts such as the Ilme CXF4/2RY allow high-current power conductors and lower-current auxiliary circuits to share a single detachable industrial connection. This arrangement can reduce the number of separate connectors required on machinery while simplifying installation, servicing and equipment replacement.
The CXF4/2RY combines four 80 A power poles and protective earth with two 16 A auxiliary poles. Its screw terminals facilitate direct field wiring, while the Ryton insulating body makes this version particularly appropriate where the characteristics of a high-performance PPS insulation material are required.
Typical Applications
Industrial motors and drive systems.
Heavy-duty machinery power connections.
Factory automation and production equipment.
Combined power and auxiliary control circuits.
Material handling and conveyor systems.
Machine tools and processing equipment.
OEM machinery and detachable equipment connections.
Technical Specifications
Tick the specs you need, then view products that match.
Connection
Screw
Device Type
Insert / Module
Product Series
ILME C-Type
Contacts
4P+E
Contact Gender
Female
HS Code
85366990
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX
Model
CXF4/2RY / CXF 4/2 RY
Product type
Heavy-duty connector insert
Connection type
Female connection
Contact gender
Female
Power poles
4 poles + PE
Auxiliary poles
2 poles
Main rated current
80 A
Auxiliary rated current
16 A
Termination method
Screw connection
Insulating material
Ryton (PPS)
Application
Combined power and auxiliary connectivity
Mounting
Compatible ILME heavy-duty connector hood or housing
Frequently Asked Questions
What is the Ilme CXF4/2RY used for?
The CXF4/2RY is a female heavy-duty connector insert designed to carry high-current power and auxiliary circuits through a compatible ILME industrial connector assembly.
How many poles does the CXF4/2RY provide?
The insert provides 4 power poles plus protective earth and 2 auxiliary poles.
What are the current ratings of the CXF4/2RY?
The four main power poles are rated at 80 A, while the two auxiliary poles are rated at 16 A.
What termination method does the CXF4/2RY use?
The CXF4/2RY uses screw connections, enabling conductors to be terminated directly at the insert.
What does the RY designation indicate on the CXF4/2RY?
The RY version uses a Ryton (PPS) insulating body, distinguishing it from the standard CXF4/2 insert construction.
Is the CXF4/2RY a male or female insert?
The CXF4/2RY is a female connector insert and is intended to mate with the corresponding compatible male insert.
Trusted by Industrial Machine Builders
ILME CX heavy-duty connector inserts provide machine builders, panel builders and automation engineers with robust solutions for combining power and auxiliary circuits in detachable industrial connections, with specialist Ryton versions available for particularly demanding applications.
Connection
Screw
Device Type
Insert / Module
Product Series
ILME C-Type
Contacts
4P+E
Contact Gender
Female
HS Code
85366990
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX
Model
CXF4/2RY / CXF 4/2 RY
Product type
Heavy-duty connector insert
Connection type
Female connection
Contact gender
Female
Power poles
4 poles + PE
Auxiliary poles
2 poles
Main rated current
80 A
Auxiliary rated current
16 A
Termination method
Screw connection
Insulating material
Ryton (PPS)
Application
Combined power and auxiliary connectivity
Mounting
Compatible ILME heavy-duty connector hood or housing
