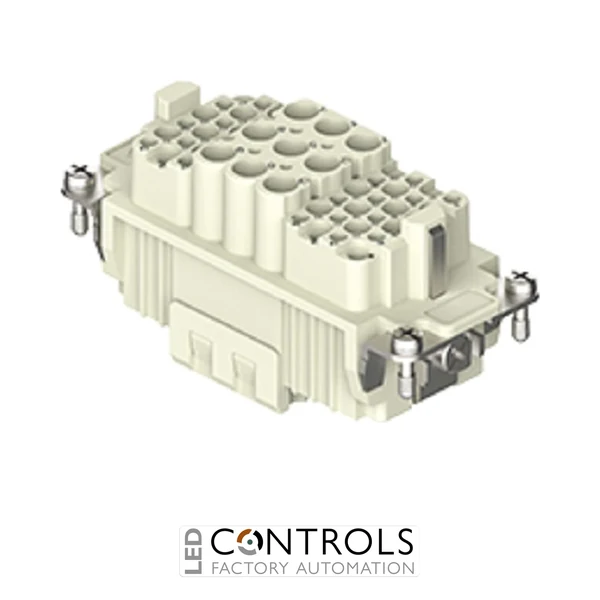

ILME CXF 9/42 is a size 77.27 female CX series crimp connector insert with 9 power poles rated at 40 A and 690 V, 42 auxiliary poles rated at 10 A and 250 V, and a protective earth connection.
SKU:CXF9/42Alt SKU:CXF9/42MPN:CXF 9/42
Price
List Price£10.34ex VAT
Your Price (ex VAT)
£10.34
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
The ILME CXF 9/42 is a high-density female multipole connector insert designed for reliable power and auxiliary signal connections in industrial machinery, control systems and heavy-duty electrical equipment. As part of the ILME CX series, it combines nine high-current power poles, 42 auxiliary poles and a protective earth connection within the compact size 77.27 format.
The CXF 9/42 uses crimp connection technology to provide secure, vibration-resistant electrical terminations suitable for demanding industrial environments. Its two contact groups allow power and control circuits to be carried through a single connector interface, helping reduce installation space and simplify machine wiring.
The main contact section is rated at 40 A and 690 V, while the 42 auxiliary contacts are rated at 10 A and 250 V. Manufactured from durable polycarbonate and designed for at least 500 mating cycles, the CXF 9/42 provides a robust connection solution for machinery, automation and industrial power distribution applications.
Key Advantages
High-density female connector insert with 9 power poles + 42 auxiliary poles + PE.
Main contacts rated at 40 A and 690 V for industrial power circuits.
Auxiliary contacts rated at 10 A and 250 V for control and signal connections.
Crimp connection provides secure and reliable conductor termination.
Compact size 77.27 format combines power and auxiliary circuits in one connector.
Designed for at least 500 mating cycles for dependable industrial service.
Key Features
ILME CX series female insert.
9 power poles + 42 auxiliary poles + PE.
40 A, 690 V main contact rating.
10 A, 250 V auxiliary contact rating.
Crimp connection for power and auxiliary contacts.
Rated impulse withstand voltage of 8 kV for the main circuit and 4 kV for the auxiliary circuit.
IP20 protection without an enclosure, with higher protection available when fitted in a suitable ILME enclosure.
Operating temperature range of -40 °C to +125 °C.
Reliable Power and Control Connections for Industrial Equipment
Multipole connector inserts such as the ILME CXF 9/42 allow power, control and auxiliary circuits to be connected through a single heavy-duty connector system. Combining circuits in this way can simplify installation, reduce wiring complexity and make machinery easier to disconnect for maintenance or replacement.
The CX series is designed for demanding industrial installations where dependable electrical connections and high contact density are required. When installed in a compatible ILME enclosure, the CXF 9/42 can form part of a protected connector assembly suitable for machinery, automation equipment and harsh industrial environments.
Typical Applications
Industrial machinery and machine building.
Automation and robotic systems.
Motor and drive connection systems.
Control cabinets and electrical panels.
Production and processing equipment.
Heavy-duty multipole power and signal connections.
Technical Specifications
Tick the specs you need, then view products that match.
Connection
Crimp
Frame Size
77.27
Housing Material
Thermoplastic
Product Series
ILME C-Type
Contacts
9P+E
Contact Gender
Female
Device Type
Insert / Module
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX
Model
CXF 9/42
Product type
Female multipole connector insert
Connection type
Crimp connection
Gender
Female
Main poles
9 poles + PE
Auxiliary poles
42 poles
Main contact current
40 A
Main contact voltage
690 V
Auxiliary contact current
10 A
Auxiliary contact voltage
250 V
Rated impulse withstand voltage
8 kV main / 4 kV auxiliary
Rated voltage according to UL/CSA
600 V
Pollution degree
3
Protection rating
IP20 without enclosure; IP65/IP66/IP68/IP69 with suitable enclosure
Size
77.27
Main material
Polycarbonate (PC)
Colour
RAL 7032 grey
Operating temperature
-40 °C to +125 °C
Mating cycles
≥ 500
Insulation resistance
≥ 10 GΩ
Contact resistance
≤ 0.3 mΩ / ≤ 3 mΩ
Flammability rating
UL 94 V-0
Weight
66 g
Certifications
CQC, DNV, BV, EAC
RoHS conformity
Compliant
EAN13
8015747270199
IP Rating
IP20, IP65, IP66, IP68, IP69
Frequently Asked Questions
What is the ILME CXF 9/42 used for?
The CXF 9/42 is used as a female multipole connector insert for carrying power and auxiliary control or signal circuits in industrial machinery and automation equipment.
How many contacts does the CXF 9/42 provide?
The insert provides 9 power poles, 42 auxiliary poles and a protective earth connection.
What are the current and voltage ratings?
The main contacts are rated at 40 A and 690 V, while the auxiliary contacts are rated at 10 A and 250 V.
What termination method does the CXF 9/42 use?
The CXF 9/42 uses crimp connections, providing secure conductor termination for industrial applications.
What protection rating does the insert provide?
The insert is rated IP20 without an enclosure and can achieve IP65, IP66, IP68 or IP69 protection when installed in a suitable compatible enclosure.
Trusted Industrial Connectivity from ILME
