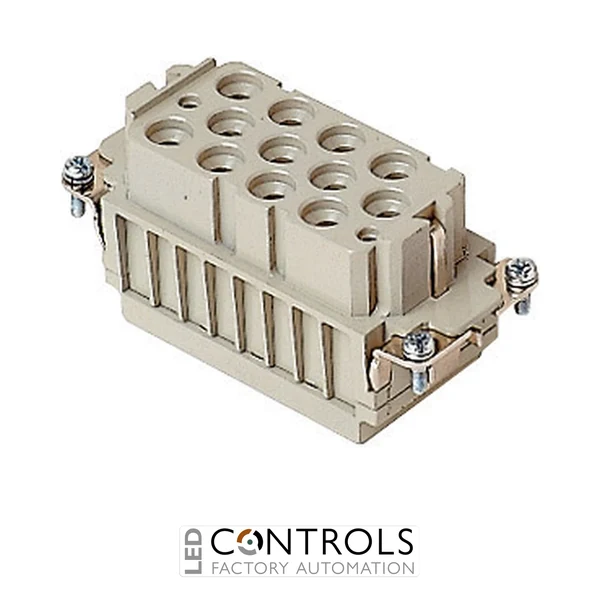

CXF12/2 Ilme Female insert 12 pole and earth 40 amp and 2 pole 10 amp
Ilme CXF12/2 is a female CX series crimp connector insert combining 12 main poles plus protective earth rated at 40 A and 690 V with 2 auxiliary poles rated at 10 A and 250 V for industrial power and control connections.
SKU:CXF12/2Alt SKU:CXF 12/2MPN:CXF12/2
Price
List Price£11.28ex VAT
Your Price (ex VAT)
£11.28
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the Ilme CXF12/2 Female Connector Insert?
The Ilme CXF12/2 is a high-performance female multipole connector insert designed for heavy-duty industrial power and auxiliary connections. Part of the Ilme CX series, this insert combines 12 main poles plus protective earth rated at 40 A with 2 auxiliary poles rated at 10 A, allowing power and control circuits to be accommodated within a single compact connector assembly.
The CXF12/2 uses crimp connections to provide secure, vibration-resistant conductor termination suitable for industrial machinery and automation installations. The main circuit is rated at 40 A, 690 V with an 8 kV impulse withstand voltage, while the two auxiliary contacts are rated at 10 A, 250 V with a 4 kV impulse withstand voltage.
Manufactured from robust polycarbonate and designed for Ilme size 77.27 enclosures, the CXF12/2 provides dependable connectivity across an operating temperature range of -40 °C to +125 °C. When installed in a suitable Ilme enclosure, the connector assembly can achieve high levels of environmental protection for demanding industrial applications.
Key Advantages
Combined 12 main poles + PE and 2 auxiliary poles in one connector insert.
Main contacts rated at 40 A and 690 V for industrial power connections.
Auxiliary contacts rated at 10 A and 250 V for control and signalling circuits.
Crimp connection technology provides secure and reliable conductor termination.
Rated for at least 500 mating cycles for dependable service.
Wide -40 °C to +125 °C operating temperature range.
Key Features
Ilme CX series female insert.
12 main poles + PE with 2 auxiliary poles.
40 A, 690 V main circuit rating.
10 A, 250 V auxiliary circuit rating.
8 kV main circuit rated impulse withstand voltage.
Durable polycarbonate insulating body with UL 94 V-0 flammability rating.
Reliable Power and Control Connectivity for Industrial Machinery
The Ilme CXF12/2 combines higher-current power connections with lower-current auxiliary circuits in one heavy-duty connector insert. This configuration allows machinery designers to route power, control and signalling connections through a single detachable interface, helping reduce installation complexity and simplify equipment servicing.
Its crimp termination system provides mechanically secure conductor connections suitable for applications exposed to vibration and repeated connection cycles. Combined with compatible Ilme hoods and housings, the CXF12/2 provides a robust connection solution for industrial machinery, control systems and automated production equipment.
Typical Applications
Industrial machinery power and control connections.
Factory automation and production equipment.
Motor and drive system connections.
Material handling and conveyor systems.
Packaging and processing machinery.
Heavy-duty multipole connector assemblies.
Technical Specifications
Tick the specs you need, then view products that match.
Connection
Crimp
Frame Size
77.27
Housing Material
Thermoplastic
Product Series
ILME C-Type
Contacts
12 poles
Contact Gender
Female
Device Type
Insert / Module
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
CX
Model
CXF12/2
Alternative reference
CXF 12/2
Product type
Female multipole connector insert
Connection type
Crimp connection
Gender
Female
Main poles
12 poles + PE
Auxiliary poles
2 poles
Main rated current
40 A
Main rated voltage
690 V
Auxiliary rated current
10 A
Auxiliary rated voltage
250 V
Main rated impulse withstand voltage
8 kV
Auxiliary rated impulse withstand voltage
4 kV
Pollution degree
3
Rated voltage according to UL/CSA
600 V
Connector size
77.27
Protection rating
IP20 without enclosure; up to IP65/IP66/IP68/IP69 with suitable enclosure
Mating cycles
≥ 500
Insulation resistance
≥ 10 GΩ
Operating temperature
-40 °C to +125 °C
Main material
Polycarbonate (PC)
Colour
RAL 7032 grey
Flammability rating
UL 94 V-0
Reference standard
EN 61984:2009-06
Weight
81 g
EAN
8015747042260
IP Rating
IP20, IP65, IP66, IP68, IP69
Frequently Asked Questions
What is the Ilme CXF12/2 used for?
The CXF12/2 is a female multipole connector insert designed to combine higher-current power connections and lower-current auxiliary control circuits within one industrial connector assembly.
How many poles does the Ilme CXF12/2 have?
The insert provides 12 main poles plus protective earth together with 2 auxiliary poles.
What are the current and voltage ratings of the CXF12/2?
The 12 main contacts are rated at 40 A, 690 V, while the two auxiliary contacts are rated at 10 A, 250 V.
What connection method does the CXF12/2 use?
The CXF12/2 uses crimp connections, providing secure conductor termination suitable for industrial machinery and automation systems.
What enclosure size is required for the Ilme CXF12/2?
The CXF12/2 is a size 77.27 insert and is designed for installation with compatible Ilme hoods and housings of the corresponding size.
Trusted by Industrial Engineers Worldwide
Ilme CX heavy-duty connector inserts are engineered for reliable power and control connectivity in industrial machinery, automation equipment and demanding electrical installations where robust, serviceable multipole connections are essential.
Connection
Crimp
Frame Size
77.27
Housing Material
Thermoplastic
Product Series
ILME C-Type
Contacts
12 poles
Contact Gender
Female
Device Type
Insert / Module
HS Code
85389099
Country of Manufacture
Italy
Manufacturer
Ilme
Series
CX
Model
CXF12/2
Alternative reference
CXF 12/2
Product type
Female multipole connector insert
Connection type
Crimp connection
Gender
Female
Main poles
12 poles + PE
Auxiliary poles
2 poles
Main rated current
40 A
Main rated voltage
690 V
Auxiliary rated current
10 A
Auxiliary rated voltage
250 V
Main rated impulse withstand voltage
8 kV
Auxiliary rated impulse withstand voltage
4 kV
Pollution degree
3
Rated voltage according to UL/CSA
600 V
Connector size
77.27
Protection rating
IP20 without enclosure; up to IP65/IP66/IP68/IP69 with suitable enclosure
Mating cycles
≥ 500
Insulation resistance
≥ 10 GΩ
Operating temperature
-40 °C to +125 °C
Main material
Polycarbonate (PC)
Colour
RAL 7032 grey
Flammability rating
UL 94 V-0
Reference standard
EN 61984:2009-06
Weight
81 g
EAN
8015747042260
IP Rating
IP20, IP65, IP66, IP68, IP69
