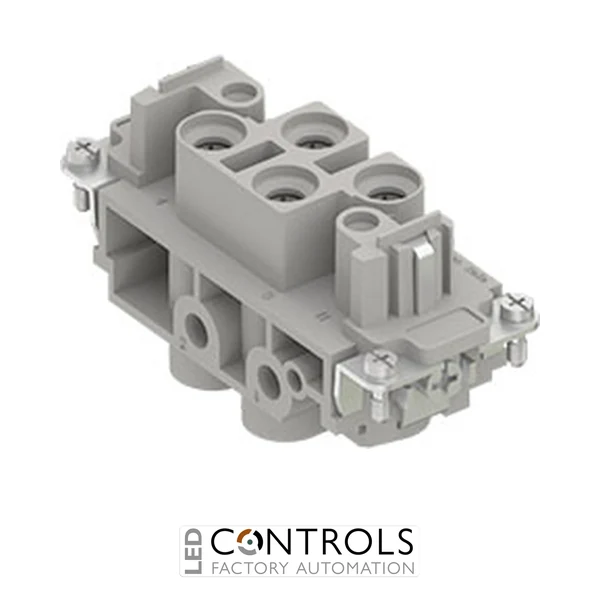

CXF4/0 Ilme Female insert 4 pole and earth 80 amp screw Size 77.27
Ilme CXF4/0 is a size 77.27 female CX series heavy-duty connector insert with 4 poles plus protective earth, an 80 A 830 V rating and screw terminal connections for industrial power applications.
SKU:CXF4/0Alt SKU:CXF 4/0MPN:CXF4/0
Price
List Price£19.41ex VAT
Your Price (ex VAT)
£19.41
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the Ilme CXF4/0 Female Connector Insert?
The Ilme CXF4/0 is a heavy-duty female connector insert with 4 poles plus protective earth, designed for high-current power connections in industrial machinery and automation equipment. Part of the Ilme CX series, this size 77.27 insert provides a rated current of 80 A and rated voltage of 830 V, making it particularly suitable for demanding power distribution and motor connection applications.
The CXF4/0 uses robust screw terminal connections, allowing conductors to be terminated securely without specialised crimping equipment. It accepts conductor cross-sections from 4–16 mm² and incorporates silver-plated contacts to provide dependable electrical conductivity and long-term connection performance.
Constructed with a durable polycarbonate insulating body and designed for at least 500 mating cycles, the CXF4/0 is suitable for demanding industrial environments. Its wide -40 °C to +125 °C operating temperature range and compatibility with Ilme size 77.27 hoods and housings make it a versatile solution for high-current detachable electrical connections.
Key Advantages
Heavy-duty 4 pole + PE female connector insert for industrial power applications.
High 80 A rated current for demanding electrical loads.
830 V rated voltage for industrial power distribution systems.
Silver-plated contacts provide reliable electrical conductivity.
Key Features
Ilme CX series female insert.
4 poles + protective earth configuration.
80 A rated current.
830 V rated voltage.
Screw terminal connection.
Size 77.27 connector format.
4–16 mm² conductor cross-section.
Silver-plated electrical contacts.
Polycarbonate insulating body with UL 94 V-0 flammability classification.
Mechanical durability of at least 500 mating cycles.
Reliable High-Current Connectivity for Industrial Machinery
Heavy-duty connector inserts such as the Ilme CXF4/0 provide a detachable interface for high-current power circuits, allowing industrial machinery and electrical equipment to be connected, disconnected and maintained without permanently wired connections. The four power contacts and dedicated protective earth connection make the insert particularly suitable for three-phase and other multipole industrial power circuits.
The CXF4/0 combines high-current capability with straightforward screw termination and durable silver-plated contacts. When installed with compatible Ilme size 77.27 hoods and housings, it provides a robust connector solution for machinery, motors, production systems and industrial power distribution equipment.
Typical Applications
Industrial machinery power connections.
Three-phase motor and drive connections.
Factory automation and production equipment.
Material handling and conveyor systems.
Industrial control panels and power distribution.
Heavy-duty detachable electrical connections.
Technical Specifications
Tick the specs you need, then view products that match.
Connection
Screw
Frame Size
77.27
Housing Material
Thermoplastic
Product Series
ILME C-Type
Contacts
4 poles
Contact Gender
Female
Device Type
Insert / Module
HS Code
85366990
Country of Manufacture
Italy
Manufacturer
Ilme
Series
CX
Model
CXF4/0
Alternative reference
CXF 4/0
Product type
Heavy-duty connector insert
Connection type
Female connection
Termination
Screw terminal connection
Number of poles
4 poles + PE
Rated current
80 A
Rated voltage
830 V
Conductor cross-section
4–16 mm²
Wire size
12–6 AWG
Connector size
77.27
Insert dimensions
77.5 × 27 mm
Contact plating
Silver plated
Insulating body material
Polycarbonate / thermoplastic
Colour
Grey
Flammability rating
UL 94 V-0
Protection rating
IP20 without enclosure
Mechanical durability
≥ 500 mating cycles
Operating temperature
-40 °C to +125 °C
Standard
EN 61984
Barcode
8015747042314
Poles
4-pole
IP Rating
IP20
Frequently Asked Questions
What is the Ilme CXF4/0 used for?
The CXF4/0 is a high-current female connector insert designed for detachable industrial power connections in machinery, motors, automation equipment and electrical distribution systems.
How many poles does the Ilme CXF4/0 have?
The CXF4/0 provides 4 power poles plus a protective earth connection.
What are the electrical ratings of the CXF4/0?
The Ilme CXF4/0 has a rated current of 80 A and a rated voltage of 830 V.
What connection method does the CXF4/0 use?
The CXF4/0 uses screw terminal connections and accepts conductor cross-sections from 4–16 mm².
What size enclosure is compatible with the Ilme CXF4/0?
The CXF4/0 is a size 77.27 connector insert designed for use with compatible Ilme heavy-duty connector hoods and housings of the corresponding size.
