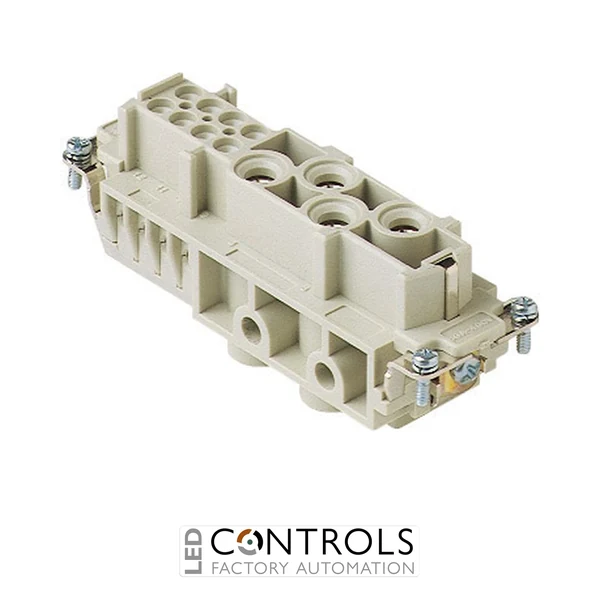

CXF4/8 Ilme Female insert 4 pole and earth 80 amp and 8 pole 16 amp
ILME CXF4/8 is a female mixed-power connector insert combining 4 high-current poles plus earth rated at 80 A with 8 auxiliary poles rated at 16 A for industrial machinery and automation connections.
SKU:CXF4/8Alt SKU:CXF 4/8MPN:CXF4/8
Price
List Price£35.54ex VAT
Your Price (ex VAT)
£35.54
In stock. Ships today if ordered before 2pm
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the ILME CXF4/8 Female Mixed-Power Insert?
The ILME CXF4/8 is a high-performance female mixed-power connector insert combining 4 high-current poles plus earth rated at 80 A with 8 auxiliary poles rated at 16 A. Designed for ILME heavy-duty industrial connector systems, it enables power and auxiliary circuits to be carried through a single compact connection interface.
The mixed-contact configuration makes the CXF4/8 particularly useful for machinery requiring both high-current power transmission and lower-current control or auxiliary connections. Combining these circuits within one insert reduces the need for multiple separate connectors and helps simplify machine wiring, installation and servicing.
The female insert is intended to mate with the corresponding compatible male insert and is suitable for demanding machine-building and industrial automation environments. Its combination of 80 A power contacts and 16 A auxiliary contacts provides a versatile connection platform for motors, machinery and other equipment requiring mixed power and control circuits.
Key Advantages
Combined high-current power and auxiliary connections within one insert.
4 power poles plus protective earth rated at 80 A.
8 auxiliary poles rated at 16 A for control and supporting circuits.
Female contact configuration for compatible ILME connector assemblies.
Reduces the number of separate connectors required for mixed power and control wiring.
Designed for robust industrial machinery and automation applications.
Key Features
ILME CX mixed-power connector insert.
Female insert.
4 high-current poles plus earth.
80 A high-current contact rating.
8 auxiliary poles.
16 A auxiliary contact rating.
Mixed-contact design combines power and auxiliary circuits.
Suitable for heavy-duty industrial connector applications.
Combined Power and Auxiliary Connectivity
Mixed-power connector inserts allow high-current supply conductors and lower-current auxiliary circuits to be routed through a common detachable interface. The ILME CXF4/8 provides four 80 A power positions plus protective earth together with eight 16 A auxiliary positions, creating a compact connection solution for equipment requiring multiple electrical functions.
This arrangement is particularly valuable in modular machinery, motor-driven equipment and production systems where power, control and auxiliary wiring must be disconnected together. Using a purpose-designed ILME insert helps create an organised, serviceable and robust industrial connection point.
Typical Applications
Industrial machinery power connections.
Motor and drive equipment.
Factory automation and production systems.
Machine power and auxiliary control interfaces.
Material-handling and conveyor equipment.
OEM machinery and heavy-duty electrical connections.
Technical Specifications
Tick the specs you need, then view products that match.
Contact Gender
Female
Device Type
Insert / Module
Frame Size
104.27
Product Series
ILME C-Type
Contacts
4 poles
HS Code
85366990
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX
Model
CXF4/8
Alternative part number
CXF 4/8
Product type
Mixed-power connector insert
Connection type
Female connection
High-current poles
4 poles + protective earth
High-current rating
80 A
Auxiliary poles
8
Auxiliary current rating
16 A
Application
Combined power and auxiliary circuits
Frequently Asked Questions
What is the ILME CXF4/8 used for?
The CXF4/8 is a female mixed-power connector insert designed to carry high-current power and lower-current auxiliary circuits through a single industrial connector interface.
How many high-current poles does the CXF4/8 have?
The insert provides 4 high-current poles plus protective earth.
What is the current rating of the main power contacts?
The main high-current contact section is rated at 80 A.
How many auxiliary contacts does the CXF4/8 provide?
The CXF4/8 provides 8 auxiliary poles rated at 16 A, allowing supporting control or auxiliary circuits to be included alongside the main power connections.
Is the ILME CXF4/8 a male or female insert?
The CXF4/8 is a female connector insert designed for use with the corresponding compatible male connection.
Trusted Heavy-Duty Connectivity from ILME
ILME mixed-power connector solutions help machine builders and automation engineers combine high-current power and auxiliary circuits within robust, compact and serviceable industrial connection systems.
Contact Gender
Female
Device Type
Insert / Module
Frame Size
104.27
Product Series
ILME C-Type
Contacts
4 poles
HS Code
85366990
Country of Manufacture
Italy
Manufacturer
ILME
Series
CX
Model
CXF4/8
Alternative part number
CXF 4/8
Product type
Mixed-power connector insert
Connection type
Female connection
High-current poles
4 poles + protective earth
High-current rating
80 A
Auxiliary poles
8
Auxiliary current rating
16 A
Application
Combined power and auxiliary circuits
