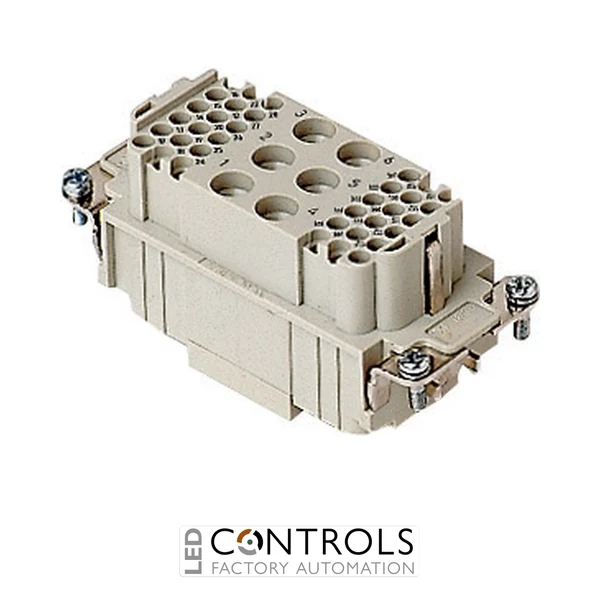

Why Choose the ILME CXF6/36 Female Mixed-Pole Insert?
The ILME CXF6/36 is a high-density female mixed-pole heavy-duty connector insert designed to combine power, control and auxiliary circuits within a single industrial connector. Part of the ILME CX series, it incorporates 6 power poles plus protective earth together with 36 auxiliary poles, making it particularly suitable for complex machinery connections where numerous circuits must be accommodated in a compact interface.
The CXF6/36 uses crimp termination with separately ordered female contacts. Its six main power contacts are rated at 40 A and 690 V, while the 36 auxiliary contacts are rated at 10 A and 160 V according to EN 61984 characteristics. This mixed configuration provides an efficient way to carry substantial power loads alongside numerous lower-current control and signalling circuits.
Designed for size 77.27 ILME enclosures, the CXF6/36 can be installed in a wide range of compatible heavy-duty connector housings and hoods. The insert accepts dedicated 40 A CX-series contacts and 10 A CD-series contacts, allowing conductor sizes to be selected according to the individual circuits and installation requirements.
Key Advantages
- High-density 6-pole 40 A + 36-pole 10 A + PE mixed configuration.
- 690 V power section for demanding industrial power connections.
- 160 V auxiliary section for numerous control and signal circuits.
- Crimp termination provides secure and reliable conductor connections.
- Compact size 77.27 format combines multiple circuit types in one connector.
- Compatible with a broad selection of ILME size 77.27 heavy-duty connector enclosures.
Key Features
- ILME CX series female insert.
- 6 power poles + 36 auxiliary poles + PE.
- 40 A rated current for the six main power contacts.
- 10 A rated current for the 36 auxiliary contacts.
- 690 V rated voltage for the power section.
- 160 V rated voltage for the auxiliary section according to EN 61984.
- 8 kV rated impulse withstand voltage for the 40 A power section.
- 2.5 kV rated impulse withstand voltage for the 10 A auxiliary section.
- Crimp connection with contacts ordered separately.
- Designed for size 77.27 heavy-duty connector enclosures.
High-Density Power and Control Connectivity
Mixed-pole connector inserts such as the ILME CXF6/36 enable power and auxiliary circuits to share a single heavy-duty industrial connector. The six 40 A positions are suited to higher-current equipment connections, while the 36 additional 10 A positions provide substantial capacity for control, signalling and auxiliary wiring.
By combining these circuits within one size 77.27 interface, the CXF6/36 can reduce the number of separate connectors required on complex machinery. Its crimp-contact system also allows conductor sizes to be matched to individual circuits while providing dependable connections for industrial installations exposed to vibration and repeated servicing.
Typical Applications
- Industrial machinery and machine building.
- Combined motor power and control connections.
- Automated production and assembly equipment.
- Robotics and manufacturing systems.
- Material handling and conveyor equipment.
- Control cabinets and machine interfaces.
- High-density power, control and signal connections.
