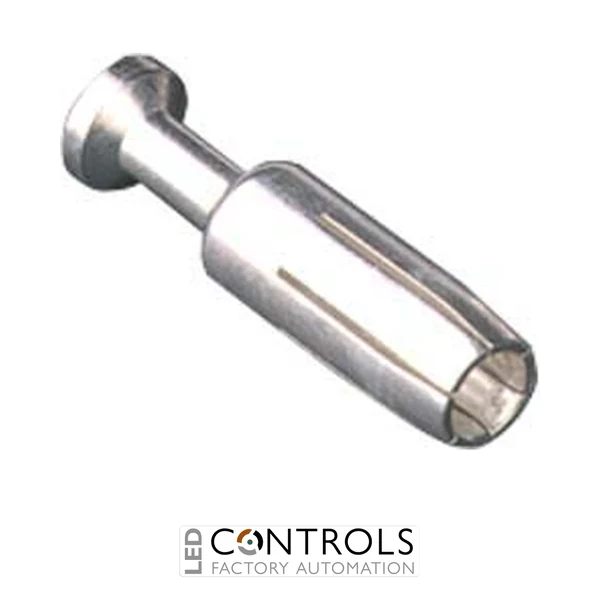

Why Choose the Ilme CXFA6.0 Female Crimp Contact?
The Ilme CXFA6.0 is a high-quality female crimp contact designed for compatible Ilme CX series heavy-duty industrial connector inserts. Rated at 40 A and designed for 6 mm² conductors, this precision contact provides reliable electrical connectivity for industrial power, machinery and automation applications.
The CXFA6.0 features a silver-plated contact surface to support excellent electrical conductivity and dependable long-term performance. Its crimp termination method produces a mechanically secure conductor connection, making it particularly suitable for industrial equipment where vibration resistance and consistent electrical performance are required.
Designed specifically for 6 mm² conductors, the CXFA6.0 forms part of Ilme's CX high-current contact system and is installed into compatible female CX connector inserts. Its replaceable contact format allows connector assemblies to be configured with the appropriate conductor sizes while maintaining the robust, serviceable design expected from Ilme heavy-duty industrial connectors.
Key Advantages
- High-current female crimp contact rated at 40 A.
- Designed specifically for 6 mm² conductors.
- Silver-plated contact surface supports reliable electrical conductivity.
- Crimp termination provides a secure and vibration-resistant conductor connection.
- Precision contact construction for dependable industrial power transmission.
- Designed for compatible Ilme CX series heavy-duty connector inserts.
Key Features
- Ilme CX series female contact.
- 40 A rated current.
- 6 mm² conductor cross-section.
- Female crimp connection.
- Silver-plated contact for dependable conductivity.
- Precision-formed contact for industrial connector applications.
- Secure crimp termination for mechanically robust wiring.
- Replaceable contact format simplifies connector configuration and servicing.
Reliable High-Current Connections for Industrial Machinery
Crimp contacts such as the Ilme CXFA6.0 provide a secure electrical interface between field wiring and removable heavy-duty connector inserts. A correctly executed crimp creates a strong mechanical and electrical connection without relying on screw pressure, helping provide consistent performance in machinery exposed to vibration and repeated operating cycles.
The CXFA6.0 combines a 40 A current rating with compatibility for 6 mm² conductors and a silver-plated contact surface. When installed in the appropriate Ilme CX female insert using suitable crimping tooling, it provides a robust connection for industrial power distribution, motor circuits and automated machinery.
Typical Applications
- Industrial machinery power connections.
- Motor and drive system wiring.
- Factory automation and production equipment.
- Heavy-duty multipole connector assemblies.
- Material handling and conveyor equipment.
- Industrial control and power distribution systems.
