Why Choose the ILME CXM9/42 Male Insert?

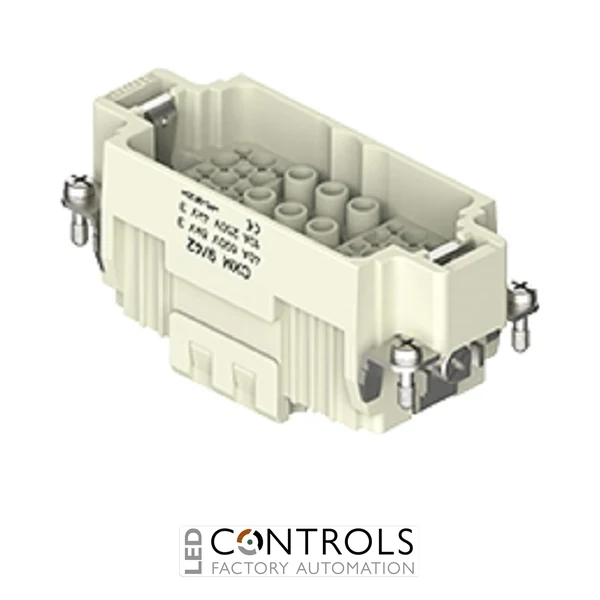

The ILME CXM9/42 is a high-density male multipole connector insert designed to combine power and auxiliary connections within a single heavy-duty industrial connector. As part of the ILME CX series, it provides nine main power poles, 42 auxiliary poles and a protective earth connection for industrial machinery, automation systems and electrical equipment.
The CXM9/42 uses crimp connection technology to provide secure and reliable conductor termination in demanding industrial applications. Its combined contact arrangement allows higher-current power circuits and lower-current control or signal circuits to pass through one connector interface, helping reduce wiring complexity and simplify equipment installation and maintenance.
The nine main power contacts are rated at 40 A and 690 V, while the 42 auxiliary contacts are rated at 10 A and 250 V. Designed in the size 77.27 format, the CXM9/42 provides a compact solution for applications requiring a high density of power and auxiliary connections within a robust industrial connector assembly.
Key Advantages
- High-density male connector insert with 9 power poles + 42 auxiliary poles + PE.
- Main power circuit rated at 40 A and 690 V.
- Auxiliary circuit rated at 10 A and 250 V.
- Crimp connection provides secure and dependable conductor termination.
- Compact size 77.27 format combines power and auxiliary circuits in one connector.
- Designed for at least 500 mating cycles for dependable industrial service.
Key Features
- ILME CX series male insert.
- 9 power poles + 42 auxiliary poles + PE.
- 40 A, 690 V main circuit rating.
- 10 A, 250 V auxiliary circuit rating.
- Crimp connection for power and auxiliary contacts.
- Rated impulse withstand voltage of 8 kV for the main circuit and 4 kV for the auxiliary circuit.
- IP20 protection without an enclosure, with higher protection available when installed in a suitable enclosure.
- Operating temperature range of -40 °C to +125 °C.
Reliable Power and Control Connections for Industrial Machinery
Multipole connector inserts such as the ILME CXM9/42 allow power, control and auxiliary circuits to be routed through a single heavy-duty connector assembly. Combining these circuits can reduce wiring complexity, save installation space and make machinery easier to connect and disconnect during commissioning, servicing or replacement.
The CXM9/42 is supplied as an insert without contacts, allowing the appropriate ILME male crimp contacts to be selected separately for the required conductor sizes. When installed with compatible contacts and a suitable ILME enclosure, the CX series provides a robust connection system for modern machinery, automation equipment and demanding industrial electrical installations.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic systems.
- Motor, drive and power connection systems.
- Control cabinets and electrical panels.
- Production and processing equipment.
- Heavy-duty multipole power, control and signal connections.
