Why Choose the Ilme CXM4/0 Male Connector Insert?

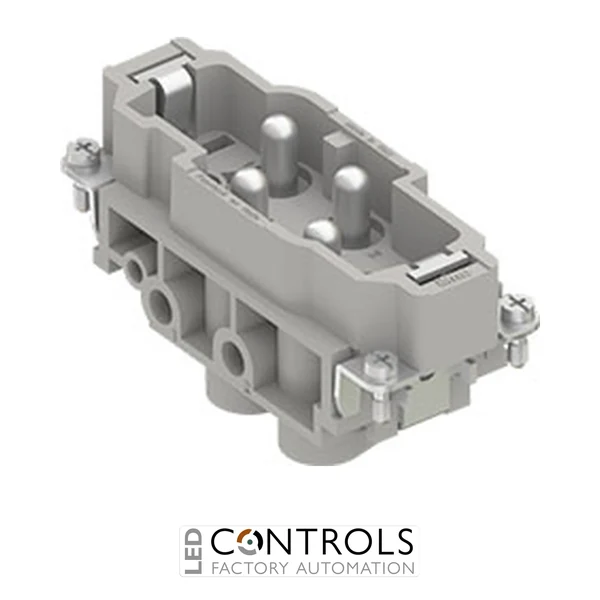

The Ilme CXM4/0 is a heavy-duty male connector insert from the ILME CX series, designed for reliable high-current power connections in industrial machinery and automation systems. It provides 4 power poles plus protective earth with a rated current of 80 A and a rated voltage of 830 V, making it suitable for demanding industrial power applications.
The CXM4/0 uses screw terminal connections, allowing conductors to be terminated directly without separate crimp contacts. It accepts conductor cross-sections from 4–16 mm², equivalent to approximately AWG 12–6, while its silver-plated contacts provide a durable and highly conductive electrical interface.
Designed in the standard ILME size 77.27 format, the CXM4/0 features a robust polycarbonate insulating body with a UL 94 V-0 flammability classification. Its wide operating temperature range of -40 °C to +125 °C and mechanical durability of at least 500 mating cycles make it well suited to machinery, motor connections and other industrial installations requiring dependable detachable power connectivity.
Key Advantages
- High-current 4 pole + PE male connector insert for industrial power circuits.
- 80 A rated current for demanding machinery applications.
- 830 V rated voltage according to the manufacturer's EN 61984 characteristics.
- Screw terminal connection allows direct conductor termination.
- Accepts conductors from 4–16 mm² / AWG 12–6.
- Durable silver-plated contacts for reliable electrical connectivity.
- Standard size 77.27 format for compatible ILME heavy-duty connector enclosures.
Key Features
- ILME CX series male insert.
- 4 power poles + protective earth.
- 80 A rated current.
- 830 V rated voltage.
- 8 kV rated impulse withstand voltage.
- Pollution degree 3.
- Screw terminal connection.
- 4–16 mm² conductor capacity.
- Silver-plated contacts.
- Polycarbonate insulating body with UL 94 V-0 flammability rating.
- Mechanical durability of 500 mating cycles.
Reliable High-Current Power Connectivity for Industrial Machinery
Heavy-duty connector inserts such as the Ilme CXM4/0 provide a secure detachable interface for high-current electrical circuits. By combining four power conductors and protective earth within one connector, the insert simplifies machinery installation and maintenance while allowing complete equipment sections to be disconnected without individually removing each power conductor.
The CXM4/0 combines an 80 A current rating with screw terminals suitable for conductors up to 16 mm². Its silver-plated contacts, robust polycarbonate insulating body and size 77.27 construction make it suitable for compatible ILME hoods and housings used in demanding industrial power-distribution and machine-connection applications.
Typical Applications
- Industrial motors and drive systems.
- Heavy-duty machinery power connections.
- Factory automation and production equipment.
- Material handling and conveyor systems.
- Machine tools and processing machinery.
- Detachable power connections between machine sections.
- OEM machinery and industrial control equipment.
