Why Choose the Ilme CXM4/2 Male Connector Insert?

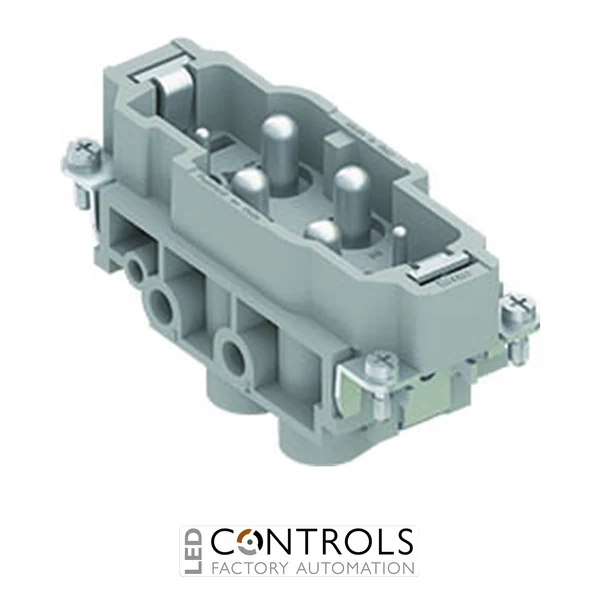

The Ilme CXM4/2 is a heavy-duty male multipole connector insert from the ILME CX series, designed to combine high-current power and auxiliary connections within a single industrial connector assembly. It provides 4 power poles plus protective earth rated at 80 A together with 2 auxiliary poles rated at 16 A, making it particularly suitable for machinery requiring both power and control circuits through one detachable interface.
The CXM4/2 uses screw terminal connections for straightforward and secure conductor termination. Its main power circuit is rated at 80 A and 830 V, while the two auxiliary contacts are rated at 16 A and 400 V. This mixed-contact configuration helps reduce the number of separate connectors required on industrial equipment while maintaining dedicated connections for power and auxiliary functions.
Designed in the ILME size 77.27 format, the CXM4/2 features turned silver-plated copper-alloy contacts housed within a robust self-extinguishing insulating body. The main terminals accommodate conductors from 4–16 mm², making the insert a practical high-current connection solution for motors, production machinery, automation equipment and other demanding industrial systems.
Key Advantages
- Combines 4 high-current power poles, PE and 2 auxiliary poles within one connector insert.
- Main power contacts rated at 80 A and 830 V.
- Auxiliary contacts rated at 16 A and 400 V.
- Screw terminal connections allow direct conductor termination.
- Main power terminals accommodate 4–16 mm² conductors.
- Silver-plated copper-alloy contacts provide dependable electrical connectivity.
- Standard size 77.27 format for compatible ILME heavy-duty connector enclosures.
Key Features
- ILME CX series male insert.
- 4 power poles + PE + 2 auxiliary poles.
- 80 A, 830 V main power circuit.
- 16 A, 400 V auxiliary circuit.
- Screw terminal connection.
- Main conductor capacity of 4–16 mm² / AWG 12–6.
- 8 kV rated impulse withstand voltage for the main circuit.
- Turned silver-plated contacts.
- Mechanical durability of at least 500 mating cycles.
- Designed for compatible size 77.27 ILME hoods and housings.
Combined Power and Control Connectivity for Industrial Machinery
Heavy-duty mixed-contact inserts such as the Ilme CXM4/2 allow high-current power conductors and lower-current auxiliary circuits to pass through a single detachable connector assembly. This arrangement can simplify machine wiring, reduce the number of separate connection points and make installation, servicing and equipment replacement more efficient.
The CXM4/2 combines four 80 A power contacts and protective earth with two 16 A auxiliary contacts. Its screw termination, silver-plated contact surfaces and size 77.27 construction make it suitable for industrial systems requiring a robust male connector interface for simultaneous power and auxiliary connectivity.
Typical Applications
- Industrial motors and drive systems.
- Heavy-duty machinery power connections.
- Factory automation and production equipment.
- Combined power and auxiliary control circuits.
- Material handling and conveyor systems.
- Machine tools and processing machinery.
- OEM machine building and detachable equipment connections.
