Why Choose the ILME CXM4/8 Male Mixed-Power Insert?

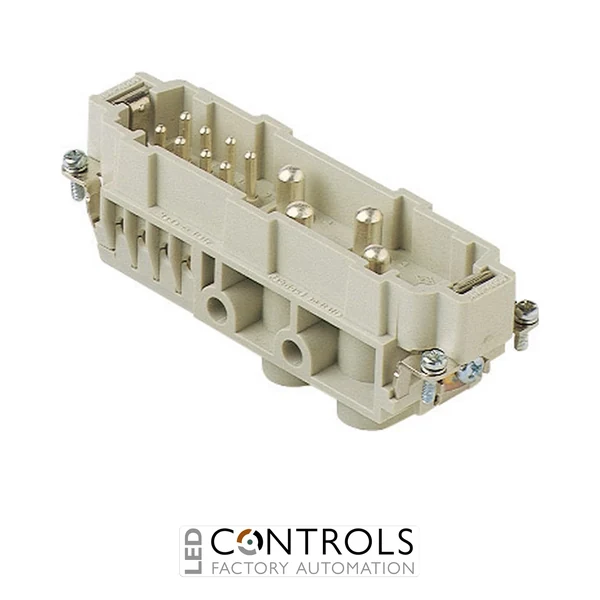

The ILME CXM4/8 is a heavy-duty male mixed-power connector insert combining 4 high-current poles plus protective earth rated at 80 A with 8 auxiliary poles rated at 16 A. This mixed-contact arrangement provides a compact industrial interface for equipment requiring both substantial power transmission and auxiliary electrical circuits.
Designed for demanding machinery and automation installations, the CXM4/8 uses screw termination for practical and serviceable conductor connection. Its 80 A power section is suited to high-current circuits, while the eight 16 A auxiliary positions can accommodate control, monitoring, interlock and other supporting electrical functions within the same connector assembly.
By combining multiple circuit types within one robust insert, the CXM4/8 can reduce the number of separate connectors required between machine sections. Its male configuration is intended to mate with the corresponding compatible female insert, providing a dependable solution for modular machinery, motor systems and industrial production equipment.
Key Advantages
- Combines high-current power and auxiliary circuits within one connector insert.
- 4 power poles plus protective earth rated at 80 A.
- 8 auxiliary poles rated at 16 A.
- Practical and serviceable screw termination.
- Male connection for compatible ILME heavy-duty connector assemblies.
- Helps reduce separate connector interfaces for power and auxiliary wiring.
Key Features
- ILME CX mixed-power connector insert.
- Male insert.
- 4 high-current poles plus protective earth.
- Main contact current rating of 80 A.
- 8 auxiliary poles rated at 16 A.
- Screw connection termination.
- Mixed-contact design for power and auxiliary circuits.
- Suitable for heavy-duty industrial machinery connections.
High-Current and Auxiliary Circuits in One Connection
Mixed-power inserts provide an efficient way to route high-current supply conductors and lower-current auxiliary wiring through one detachable industrial interface. The ILME CXM4/8 combines four 80 A power positions plus protective earth with eight 16 A auxiliary positions, supporting applications where several electrical functions must be connected together.
The screw-termination design provides a practical approach to installation and servicing, while the combined contact arrangement is well suited to motor-driven machinery, modular equipment and automated production systems. Using one mixed-power insert can simplify machine wiring and make disconnection during maintenance or equipment changes more convenient.
Typical Applications
- Industrial machinery power connections.
- Motors and drive systems.
- Factory automation equipment.
- Combined power, control and monitoring interfaces.
- Material-handling and conveyor systems.
- OEM machinery and modular production equipment.
