Why Choose the ILME CXM4/8RY Male Mixed-Pole Insert?

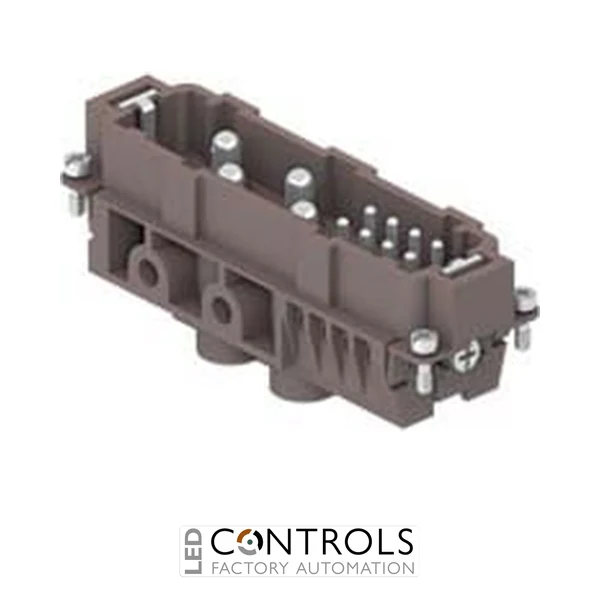

The ILME CXM4/8RY is a high-temperature male mixed-pole heavy-duty connector insert designed to combine power and auxiliary circuits within a single industrial connector. Part of the ILME CX RY series, it provides 4 power poles plus protective earth together with 8 auxiliary poles, making it ideal for machinery and equipment requiring both high-current power and control connections.
The CXM4/8RY uses screw terminal connections and incorporates silver-plated male contacts. Its four main power contacts are rated at 80 A and 400 V, while the eight auxiliary contacts are rated at 16 A and 230/400 V. This mixed configuration allows substantial power and multiple control or auxiliary circuits to be connected through one robust interface.
Specifically engineered for elevated-temperature environments, the RY version supports an operating temperature range from -40 °C to +180 °C. The insert uses the size 104.27 format and is suitable for compatible ILME heavy-duty connector enclosures, providing a durable connection solution for demanding industrial applications.
Key Advantages
- Combined 4-pole 80 A power + 8-pole 16 A auxiliary + PE configuration.
- High-temperature CX RY construction rated for operation up to +180 °C.
- Screw terminal connection simplifies secure field wiring.
- Main power section rated at 80 A and 400 V.
- Auxiliary section rated at 16 A and 230/400 V.
- Compact size 104.27 format combines power and auxiliary circuits in one heavy-duty connector.
Key Features
- ILME CX RY high-temperature series.
- 4 power poles + 8 auxiliary poles + PE.
- Male insert with male contacts.
- 80 A rated current for the four main power contacts.
- 16 A rated current for the eight auxiliary contacts.
- 400 V rated voltage for the main power section.
- 230/400 V rated voltage for the auxiliary section.
- 6 kV impulse withstand voltage for the power section.
- 4 kV impulse withstand voltage for the auxiliary section.
- Operating temperature range of -40 °C to +180 °C.
- Silver-plated contacts and mechanical life of at least 500 mating cycles.
High-Temperature Power and Control Connectivity
Mixed-pole inserts such as the ILME CXM4/8RY allow high-current power and lower-current auxiliary circuits to share one heavy-duty connector. The four 80 A poles are suitable for demanding power connections, while the eight 16 A contacts provide additional capacity for control, signalling and auxiliary circuits.
The CX RY version extends this flexibility to elevated-temperature applications, with materials designed for operation up to +180 °C. Screw terminals provide practical field wiring, while the self-extinguishing insulating construction and silver-plated contacts support reliable performance in demanding industrial installations.
Typical Applications
- High-temperature industrial machinery.
- Combined motor power and control connections.
- Industrial ovens and heating equipment.
- Automated production and processing machinery.
- Machine tools and manufacturing systems.
- Control cabinets and machine interfaces.
- Combined power, control and auxiliary circuit connections.
