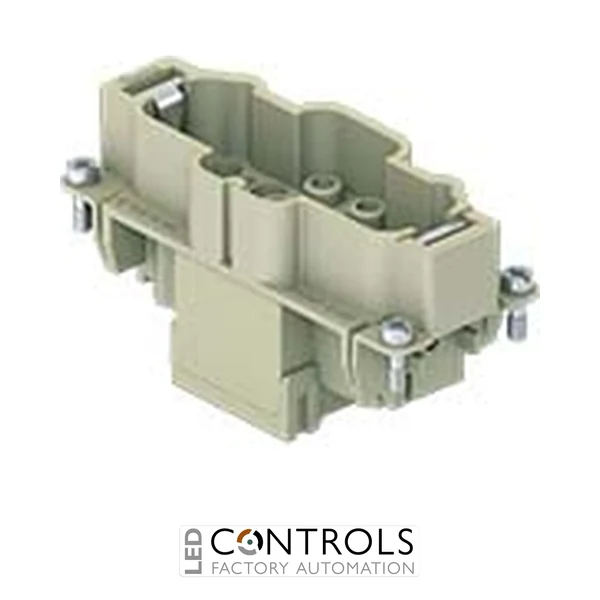

Why Choose the ILME CXM6/12 Male Mixed-Pole Insert?
The ILME CXM6/12 is a versatile male mixed-pole heavy-duty connector insert designed to combine power, control and auxiliary circuits within a single industrial connector. Part of the ILME CX series, it provides 6 power poles plus protective earth together with 12 auxiliary poles, offering an efficient connection solution for industrial machinery and automation equipment.
The CXM6/12 uses crimp termination, enabling secure and dependable conductor connections using separately selected contacts. Its six main power positions are rated at 40 A and 690 V, while the twelve auxiliary positions are rated at 10 A and 230/400 V, allowing higher-current power and lower-current control circuits to be carried through the same connector assembly.
Designed in the compact size 77.27 format, the CXM6/12 is compatible with suitable ILME heavy-duty connector enclosures. Its durable polycarbonate construction, wide operating temperature range and minimum 500-cycle mechanical life make it well suited to demanding industrial installations requiring reliable and serviceable mixed power and signal connectivity.
Key Advantages
- Combined 6-pole 40 A power + 12-pole 10 A auxiliary + PE configuration.
- Main power section rated at 690 V.
- Auxiliary section rated at 230/400 V.
- Crimp termination provides secure, reliable conductor connections.
- Compact size 77.27 format combines multiple circuit types in one connector.
- Suitable for compatible ILME enclosures providing protection up to IP69, depending on enclosure type.
Key Features
- ILME CX series male insert.
- 6 power poles + 12 auxiliary poles + PE.
- 40 A rated current for the six main power contacts.
- 10 A rated current for the twelve auxiliary contacts.
- 690 V rated voltage for the power section.
- 230/400 V rated voltage for the auxiliary section.
- 8 kV impulse withstand voltage for the power section.
- 4 kV impulse withstand voltage for the auxiliary section.
- Crimp connection with contacts selected separately.
- Mechanical durability of at least 500 mating cycles.
Combined Power and Control Connectivity
Mixed-pole inserts such as the ILME CXM6/12 enable higher-current power circuits and lower-current control or auxiliary circuits to share a single heavy-duty connector. The six 40 A positions can accommodate demanding power connections, while the twelve 10 A positions provide additional capacity for control, signalling and auxiliary wiring.
This integrated arrangement can simplify machine interfaces and reduce the number of separate connectors required. The crimp termination system provides reliable electrical connections, while the CXM6/12's robust insulating body and compatibility with protective ILME enclosures make it suitable for demanding industrial environments.
Typical Applications
- Industrial machinery and machine building.
- Combined motor power and control connections.
- Automated production equipment.
- Robotics and assembly machinery.
- Material handling and conveyor systems.
- Control cabinets and machine interfaces.
- Combined power, control and auxiliary circuit connections.
