Why Choose the ILME CXM8/24 Male Insert?

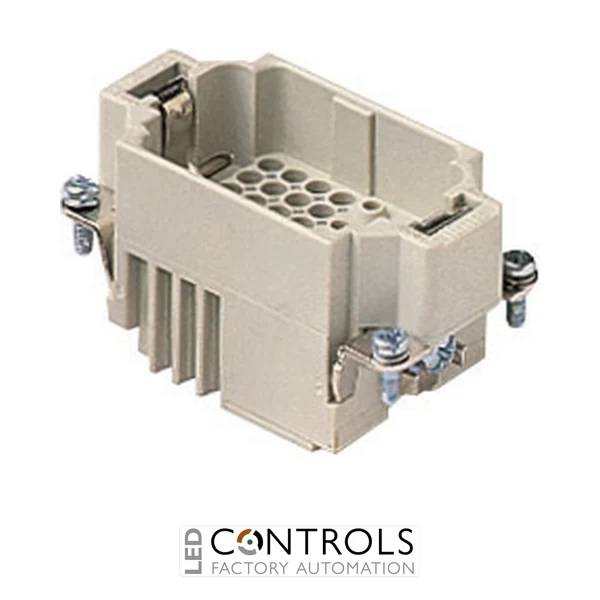

The ILME CXM8/24 is a compact and reliable male multipole connector insert designed to combine power and auxiliary connections within a single heavy-duty industrial connector. As part of the ILME CX series, it provides eight main power poles, 24 auxiliary poles and a protective earth connection for machinery, automation and industrial electrical systems.
The CXM8/24 uses crimp connection technology to provide secure, vibration-resistant conductor termination. Its mixed-contact configuration allows power and control or signal circuits to be carried through one connector interface, helping reduce installation space, simplify wiring and make equipment easier to connect and disconnect during installation or maintenance.
The eight main poles are rated at 16 A and 230/400 V, while the 24 auxiliary contacts are rated at 10 A and 160 V. Designed in the compact size 57.27 format, the CXM8/24 is suitable for industrial machinery and control systems where a high density of power and auxiliary connections is required.
Key Advantages
- Compact male connector insert with 8 power poles + 24 auxiliary poles + PE.
- Main power contacts rated at 16 A and 230/400 V.
- Auxiliary contacts rated at 10 A and 160 V.
- Crimp connection provides secure and reliable conductor termination.
- Compact size 57.27 format combines power and auxiliary circuits in one connector.
- Designed for at least 500 mating cycles for dependable industrial operation.
Key Features
- ILME CX series male insert.
- 8 power poles + 24 auxiliary poles + PE.
- 16 A, 230/400 V main contact rating.
- 10 A, 160 V auxiliary contact rating.
- Crimp connection for power and auxiliary contacts.
- Rated impulse withstand voltage of 4 kV for the main circuit and 2.5 kV for the auxiliary circuit.
- IP20 protection without an enclosure, with higher protection available when installed in a suitable ILME enclosure.
- Operating temperature range of -40 °C to +125 °C.
Reliable Power and Control Connections for Industrial Machinery
Multipole connector inserts such as the ILME CXM8/24 allow power, control and auxiliary circuits to be routed through a single heavy-duty connector assembly. This combined arrangement can reduce wiring complexity, save panel and machine space and simplify the disconnection of equipment for servicing or replacement.
The ILME CX series is designed for industrial installations requiring dependable electrical connections and high contact density. When installed in a compatible ILME enclosure with the appropriate separately ordered crimp contacts, the CXM8/24 provides a robust connection solution for modern machinery, automation equipment and industrial control systems.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic systems.
- Control and signal connection systems.
- Production and processing equipment.
- Electrical control panels and machine cabinets.
- Heavy-duty multipole power and auxiliary connections.
