Why Choose the ILME CYFA16 Female Crimp Contact?

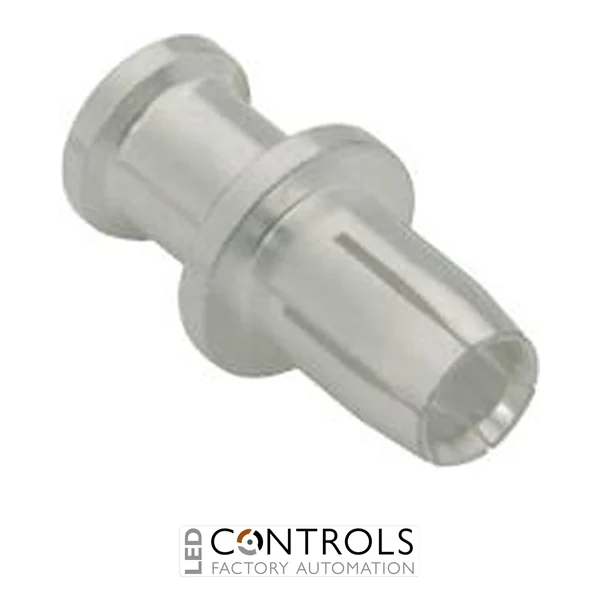

The ILME CYFA16 is a heavy-duty female crimp contact designed for high-current industrial connector applications. As part of the ILME CY series, this precision-turned contact is rated at 200 A and is specifically designed for terminating 16 mm² conductors in compatible ILME connector systems.
Manufactured from copper alloy with a silver-plated contact surface, the CYFA16 provides excellent electrical conductivity and dependable performance in demanding industrial environments. Its crimp termination creates a strong mechanical and electrical connection without soldering, making it suitable for professional assembly of machinery, automation and high-current power connections.
The CYFA16 is designed for 16 mm² / AWG 6 conductors and requires a conductor stripping length of 15 mm. It is suitable for compatible ILME 200 A MIXO modular inserts, including female-contact modules used to create robust, modular power connector assemblies.
Key Advantages
- Heavy-duty female crimp contact rated at 200 A.
- Designed specifically for 16 mm² / AWG 6 conductors.
- Silver-plated contact surface provides excellent electrical conductivity.
- Precision turned copper-alloy construction for dependable industrial performance.
- Crimp termination provides a secure mechanical and electrical connection.
- Compatible with suitable ILME CY and MIXO 200 A connector systems.
Key Features
- ILME CY series contact.
- Female crimp contact configuration.
- 200 A rated current.
- 16 mm² conductor cross-section.
- AWG 6 conductor compatibility.
- Turned silver-plated contact construction.
- 15 mm conductor stripping length.
- Contact resistance of ≤ 0.2 mΩ.
- Designed for a mechanical life of at least 500 mating cycles.
Reliable High-Current Connections for Industrial Power Systems
High-current crimp contacts such as the ILME CYFA16 provide a secure electrical termination by mechanically compressing the contact barrel around the prepared conductor. When installed using the correct ILME-approved tooling, the resulting connection provides strong conductor retention and low electrical resistance for demanding power applications.
The CY series is designed for high-current industrial connectivity, with the CYFA16 providing the female contact interface for 16 mm² conductors. When installed in a compatible ILME 200 A modular insert, it can form part of a flexible heavy-duty connector assembly for machinery, automation equipment and industrial power distribution.
Typical Applications
- ILME MIXO 200 A modular connector assemblies.
- Industrial machinery and machine building.
- High-current power distribution connections.
- Motor and drive power connections.
- Automation and robotic equipment.
- Production and processing machinery.
