Why Choose the ILME CYMA35 Male 200 A Crimp Contact?

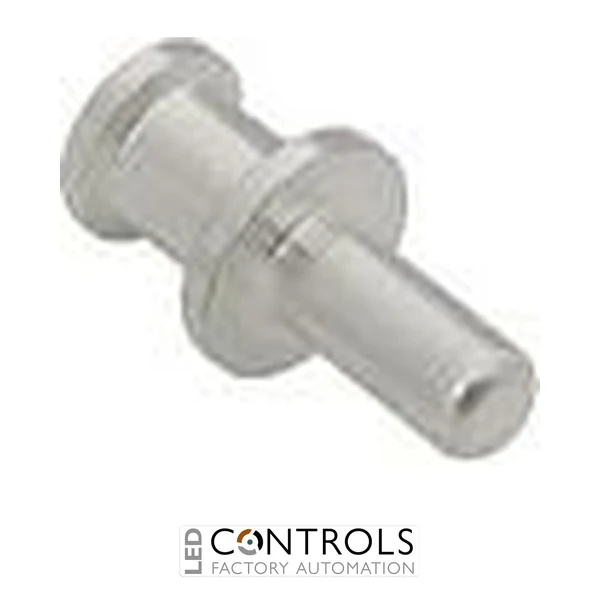

The ILME CYMA35 is a high-current male crimp contact from the ILME CY series, designed for demanding heavy-duty industrial connector applications. Rated at 200 A and manufactured specifically for 35 mm² conductors, it provides a robust detachable electrical connection for high-power machinery, automation and power distribution systems.
The CYMA35 is a turned, silver-plated contact manufactured from copper alloy for dependable electrical conductivity and mechanical durability. Its crimp termination provides a secure connection between the contact and conductor when assembled using the appropriate ILME-approved tooling.
Designed for 35 mm² / AWG 2 conductors, the CYMA35 uses a 15 mm stripping length and is identifiable within the CY contact range by its single groove. It is compatible with ILME 200 A CY contact systems, including suitable MIXO 200 A modular inserts.
Key Advantages
- High 200 A rated current for demanding industrial power circuits.
- Designed specifically for 35 mm² / AWG 2 conductors.
- Silver-plated copper-alloy contact supports low-resistance electrical performance.
- Precision turned-contact construction for professional heavy-duty connectors.
- Crimp termination provides a secure mechanical and electrical conductor connection.
- Minimum mechanical durability of 500 mating cycles.
Key Features
- ILME CY series high-current contact.
- Male pin contact configuration.
- 200 A rated current.
- Designed for 35 mm² conductors.
- Equivalent conductor size: AWG 2.
- Turned copper-alloy construction with silver-plated contact surface.
- Crimp connection for reliable industrial termination.
- 15 mm conductor stripping length.
- Single identification groove for the 35 mm² contact size.
- Compatible with ILME CY 200 A contact systems.
Reliable 200 A Connectivity for 35 mm² Conductors
The ILME CY contact system provides detachable high-current connections for industrial applications where substantial power must be transferred through a robust connector interface. With its 200 A rating and dedicated 35 mm² conductor capacity, the CYMA35 is particularly suited to machinery, drives, power distribution and modular heavy-duty connector assemblies.
For correct termination, the conductor should be prepared to the specified 15 mm stripping length and crimped using suitable ILME-approved tooling. Correct conductor preparation and crimping help achieve the low contact resistance, mechanical retention and long-term reliability required from professional high-current industrial connections.
Typical Applications
- ILME MIXO 200 A modular connector assemblies.
- Industrial machinery power connections.
- High-current motor and drive connections.
- Factory automation equipment.
- Industrial power distribution systems.
- Control cabinets and power panels.
- Heavy-duty detachable cable connections.
