Why Choose the ILME CYR16.3 Cable Passing Hood?
The ILME CYR16.3 is a robust cable passing hood designed for heavy-duty industrial multipole connector installations. Manufactured for the ILME size 77.27 format, it provides a practical cable-entry solution for machinery, automation equipment and industrial electrical systems where multiple cables need to pass through a single connector housing.

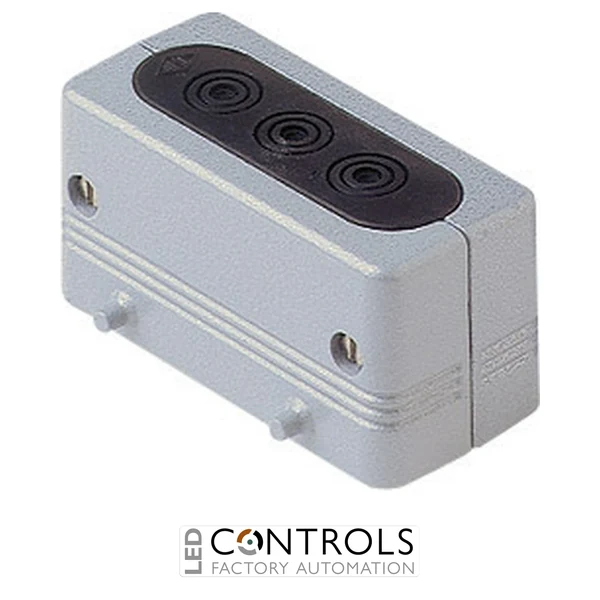

Constructed from durable die-cast aluminium, the CYR16.3 features four locking pegs and three top cable-entry holes. It is designed to accommodate three round cables with diameters from 5–13.5 mm, providing an efficient way to route multiple cables through a size 77.27 heavy-duty connector assembly.
When correctly assembled with compatible ILME components and sealing accessories, the CYR16.3 provides IP65 protection for demanding industrial environments. Its top-entry configuration, robust metal construction and wide operating temperature range make it suitable for control systems, machine building and other applications requiring dependable cable management and connector protection.
Key Advantages
- Heavy-duty cable passing hood for size 77.27 connector systems.
- Provides three cable-entry holes for efficient multi-cable routing.
- Suitable for round cables with diameters of 5–13.5 mm.
- Robust die-cast aluminium construction for industrial applications.
- Four locking pegs provide compatibility with suitable double-lever connector assemblies.
- IP65 protection when correctly assembled with compatible ILME components.
Key Features
- ILME heavy-duty connector hood.
- Size 77.27 connector format.
- Three top cable entries.
- Suitable for 3 × 5–13.5 mm diameter cables.
- Four locking pegs for double-lever locking systems.
- Durable aluminium housing.
- IP65 assembled protection rating.
- Operating temperature range of -40 °C to +125 °C.
Reliable Cable Routing for Industrial Connector Systems
Cable passing hoods such as the ILME CYR16.3 provide a protected transition between industrial connector assemblies and their associated cabling. The three-entry configuration allows several separate cables to be routed through one size 77.27 housing, helping simplify machinery wiring while maintaining an organised connector installation.
The CYR16.3 is particularly useful where power, control or data cables need to enter a common heavy-duty connector assembly. Its aluminium construction provides mechanical protection, while the four-peg locking arrangement enables secure mating with compatible ILME double-lever components in machinery and industrial automation installations.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic equipment.
- Multipole industrial connector assemblies.
- Control cabinets and electrical panels.
- Production and processing machinery.
- Multi-cable power, control and data connections.
