Why Choose the Ilme CZ7I15L Bulkhead Mounting Housing Size 49.16?

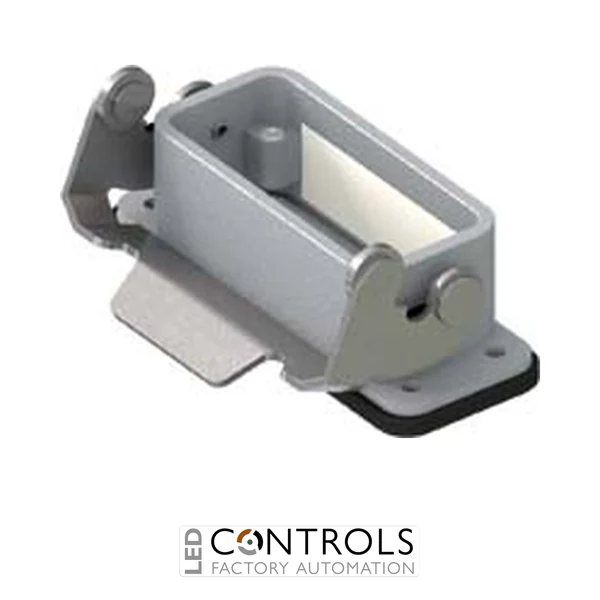

The Ilme CZ7I15L is a robust bulkhead mounting housing designed for heavy-duty industrial connector installations on control panels, machinery and electrical equipment. Part of the Ilme CZ7 series, this housing is manufactured in size 49.16 and features a single metal locking lever for secure mating with a compatible Ilme hood.
The CZ7I15L uses a durable stainless-steel lever together with an NBR sealing gasket. When correctly assembled with compatible components, the enclosure provides high environmental protection ratings of IP66, IP67 and IP69, making it suitable for demanding industrial environments where protection against dust, water and intensive cleaning processes is required.
Designed without a cable entry, the CZ7I15L mounts directly to an equipment or panel opening and forms the fixed side of a heavy-duty connector assembly. Its RAL 7040 grey finish, wide -40 °C to +125 °C operating temperature range and established industrial approvals make it a versatile enclosure for machine building and automation applications.
Key Advantages
- Heavy-duty bulkhead mounting housing for industrial connector installations.
- Size 49.16 format for compatible Ilme inserts and hoods.
- Secure single stainless-steel locking lever.
- High environmental protection of IP66 / IP67 / IP69 when correctly assembled.
- Wide operating temperature range of -40 °C to +125 °C.
- Suitable for fixed mounting to control panels, machinery and industrial equipment.
Key Features
- Ilme CZ7 series enclosure.
- Bulkhead mounting configuration.
- 1 metal lever closing system.
- Lever manufactured from stainless steel.
- Size 49.16.
- Designed without cable entry.
- NBR sealing gasket.
- RAL 7040 grey finish.
- Protection ratings of IP66, IP67 and IP69.
- Operating temperature range of -40 °C to +125 °C.
Protected Panel-Mounted Connectivity for Industrial Equipment
Bulkhead housings such as the Ilme CZ7I15L provide the fixed enclosure interface for heavy-duty connectors installed on machinery, cabinets and control panels. The size 49.16 format supports compatible Ilme inserts, while the single stainless-steel lever provides straightforward mechanical locking when the housing is mated with a suitable hood.
With IP66, IP67 and IP69 protection available in the correctly assembled connector system, the CZ7I15L is designed for installations exposed to dust, moisture and demanding industrial conditions. Its NBR gasket, metal locking mechanism and broad operating temperature range make it well suited to factory automation, machine building and industrial electrical installations.
Typical Applications
- Industrial control panels and electrical cabinets.
- Factory automation and production machinery.
- Machine power and control interfaces.
- Robotics and automated handling equipment.
- Industrial equipment requiring protected detachable connections.
- OEM machine building and panel-mounted connector assemblies.
