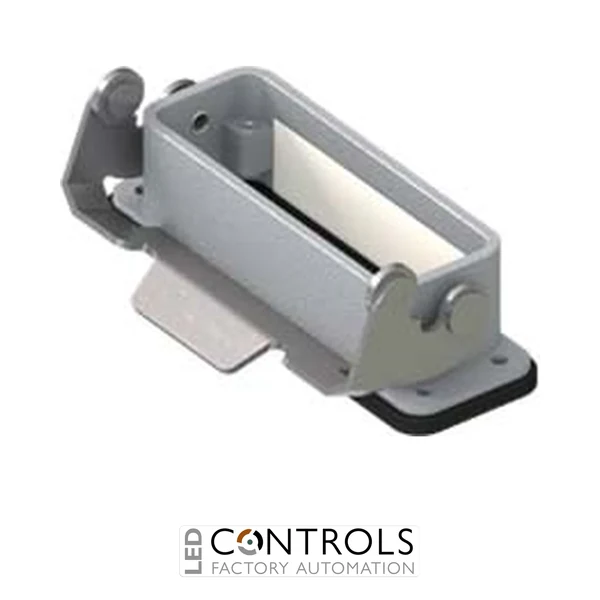

Why Choose the ILME CZ7I25L Bulkhead Mounting Housing?
The ILME CZ7I25L is a robust bulkhead mounting housing designed for heavy-duty industrial connector installations. With its compact size 66.16 format, it provides a secure fixed connection point for compatible ILME inserts used in machinery, automation, control panels and other industrial electrical equipment.
The CZ7I25L features a single metal locking lever for secure engagement with a compatible mating hood or enclosure. Its bulkhead configuration is designed for direct panel mounting and has no cable entry, making it particularly suitable for equipment-side connector interfaces where wiring terminates inside the machine or control enclosure.
Designed for demanding industrial environments, the CZ7I25L provides IP66, IP67 and IP69 protection when correctly assembled with compatible ILME components. Its wide -40 °C to +125 °C operating temperature range and rugged construction support dependable connector performance in machinery and automation installations.
Key Advantages
- Robust bulkhead housing for heavy-duty industrial connectors.
- Compact size 66.16 format for panel-mounted installations.
- Single metal locking lever provides secure connector retention.
- No cable entry required for fixed bulkhead mounting.
- IP66, IP67 and IP69 protection when correctly assembled.
- Wide operating temperature range for demanding industrial environments.
Key Features
- ILME CZ7 connector housing.
- Bulkhead / panel mounting design.
- Size 66.16.
- 1 metal locking lever.
- Designed without a cable entry.
- 66 × 16 mm insert mounting size.
- IP66 / IP67 / IP69 degree of protection.
- -40 °C to +125 °C operating temperature range.
- Compatible with corresponding ILME heavy-duty connector components.
Reliable Connector Protection for Industrial Equipment
Bulkhead connector housings provide a fixed interface between internal equipment wiring and detachable external connections. Their panel-mounted construction allows machinery, control cabinets and automation equipment to be connected and disconnected efficiently while protecting the insert and electrical contacts within a robust heavy-duty connector system.
The ILME CZ7I25L combines a compact 66.16 housing format with a secure metal locking mechanism and high levels of ingress protection. When correctly assembled with compatible components, its IP66, IP67 and IP69 ratings make it suitable for industrial environments where resistance to dust and water ingress is important.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Motor, drive and actuator connection systems.
- Material handling and conveyor equipment.
- OEM equipment requiring detachable heavy-duty connections.
