Why Choose the Ilme CZ7I25LS Bulkhead Mounting Housing?

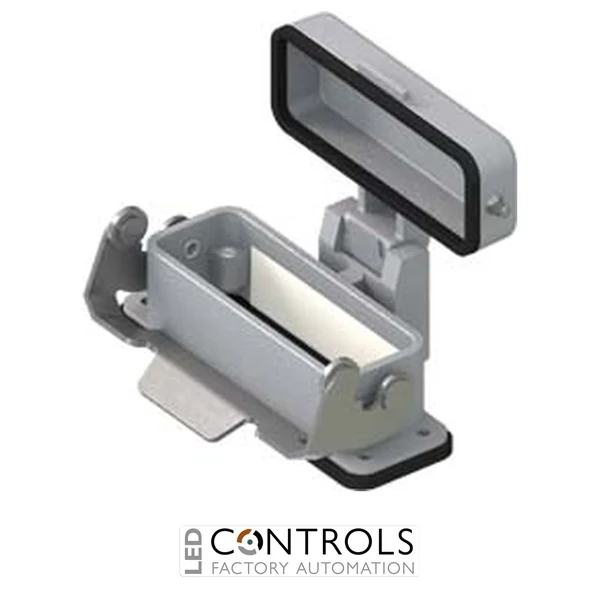

The Ilme CZ7I25LS is a compact heavy-duty bulkhead mounting housing from the ILME CZ7 series, designed for secure panel-mounted industrial connector installations. It uses the size 66.16 format and incorporates a single metal locking lever for dependable mechanical coupling with a compatible ILME hood.
Supplied with an integrated metal protective cover, the CZ7I25LS helps protect the connector interface when equipment is disconnected. The housing has no cable entry because it is intended for bulkhead or panel mounting, where the connector insert and wiring are installed from within the enclosure or machine.
When correctly assembled with compatible ILME components, the CZ7I25LS provides IP66, IP67 and IP69 protection, making it suitable for demanding industrial environments where resistance to dust, water and intensive cleaning conditions is important. Its compact CZ7 construction makes it particularly useful where installation space is limited but robust heavy-duty connectivity is still required.
Key Advantages
- Compact size 66.16 bulkhead mounting housing for industrial connector systems.
- Robust single metal locking lever provides secure mechanical coupling.
- Supplied with a metal protective cover for the connector interface.
- Provides IP66 / IP67 / IP69 protection when correctly assembled.
- Bulkhead design is ideal for control panels, machinery and equipment enclosures.
- Compact CZ7 construction helps minimise connector installation space.
- Designed for compatible ILME size 66.16 inserts, hoods and connector components.
Key Features
- ILME CZ7 series heavy-duty connector housing.
- Bulkhead mounting configuration.
- Size 66.16.
- 1 metal locking lever.
- Supplied with metal cover.
- No cable entry for panel-mounted applications.
- IP66 / IP67 / IP69 degree of protection.
- Robust metal housing construction.
- Compact format for space-conscious industrial installations.
- Designed for compatible ILME heavy-duty multipole connector components.
Protected Panel-Mount Connectivity for Industrial Equipment
Bulkhead connector housings provide a fixed interface between internal machine wiring and detachable external cables. The Ilme CZ7I25LS mounts directly to a suitable panel or enclosure cut-out and uses its single metal lever to securely lock a compatible hood in place, creating a robust connection suitable for machinery that may require regular installation, servicing or disconnection.
When the mating connector is removed, the supplied metal cover can protect the exposed interface. Combined with its IP66/IP67/IP69 protection when correctly assembled, the CZ7I25LS offers a compact and durable enclosure solution for size 66.16 heavy-duty connector installations in industrial automation and machine-building applications.
Typical Applications
- Industrial control panels and electrical cabinets.
- Factory automation equipment.
- Machine tools and production machinery.
- Material handling and conveyor systems.
- Motor and drive system connections.
- Processing and packaging equipment.
- OEM machinery and detachable equipment connections.
