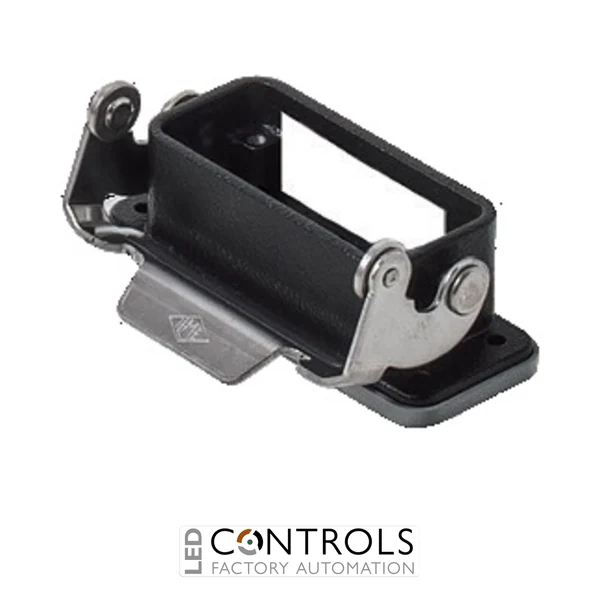

Why Choose the Ilme CZ7IW15L Bulkhead Housing?
The Ilme CZ7IW15L is a compact heavy-duty bulkhead mounting housing designed for industrial connector installations where reliable panel-mounted connectivity is required. It uses the size 49.16 format and features a single metal locking lever for secure coupling with a compatible ILME mating hood.
The CZ7IW15L belongs to ILME's W-Type Aggressive Environments enclosure range. This construction is intended for particularly demanding operating conditions, providing enhanced resistance to environmental exposure compared with standard connector enclosures and making it suitable for machinery installed in harsh industrial locations.
As a bulkhead housing, the CZ7IW15L mounts directly to a suitable panel, machine or enclosure surface and does not require a cable entry. When correctly assembled with compatible ILME components, the enclosure system provides a high degree of protection against dust and water, while the compact 49.16 footprint helps minimise the installation space required.
Key Advantages
- Designed for aggressive and demanding industrial environments.
- Compact size 49.16 bulkhead mounting format.
- Single metal locking lever provides secure connector coupling.
- W-Type enclosure construction offers enhanced environmental resistance.
- Bulkhead design is ideal for mounting directly onto panels, machines and enclosures.
- Provides high ingress protection when correctly assembled with compatible components.
- Suitable for industrial power, control and signal connector applications.
Key Features
- ILME CZ7 W-Type heavy-duty connector housing.
- Bulkhead mounting configuration.
- Size 49.16.
- 1 metal locking lever.
- Designed for aggressive environments.
- Corrosion-resistant enclosure treatment for demanding applications.
- No cable entry required for panel-mounted installation.
- Compatible with appropriate ILME size 49.16 connector inserts and mating enclosures.
- Suitable for indoor and outdoor industrial connector applications when installed according to ILME requirements.
Heavy-Duty Connectivity for Aggressive Environments
Industrial connectors installed in harsh locations can be exposed to moisture, contaminants, cleaning processes and corrosive atmospheric conditions. The Ilme CZ7IW15L is part of the W-Type enclosure family, developed to provide a more resistant connector enclosure solution for these demanding applications while retaining the convenience of a detachable heavy-duty connector interface.
The housing mounts directly to the equipment panel and uses its single metal lever to secure a compatible mating hood. Its compact size 49.16 construction makes it particularly useful where available mounting space is limited, while the aggressive-environment design supports reliable use on machinery and equipment operating under challenging environmental conditions.
Typical Applications
- Industrial machinery in aggressive environments.
- Food and beverage production equipment.
- Processing and packaging machinery.
- Outdoor industrial equipment.
- Factory automation and production systems.
- Material handling and conveyor installations.
- Industrial control panels and electrical enclosures.
- OEM machinery requiring corrosion-resistant connector housings.
