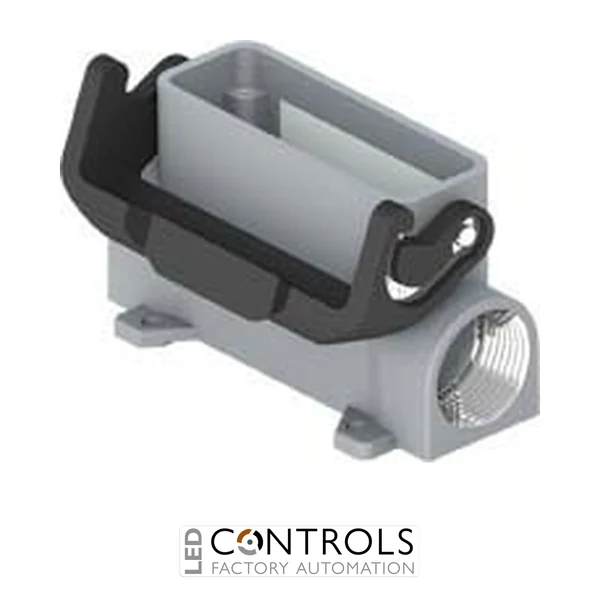

Why Choose the Ilme CZAP25L Surface Mounting Housing Size 66.16?
The Ilme CZAP25L is a robust surface mounting housing designed for heavy-duty industrial connector installations on machinery, control panels and electrical equipment. Part of the Ilme IL-BRID series, this high-construction housing is manufactured in size 66.16 and incorporates a single Pg16 cable entry for straightforward cable routing.
The CZAP25L features one locking lever manufactured from polyamide with a stainless-steel core, combining convenient operation with mechanical reinforcement. When correctly assembled with compatible Ilme components, the enclosure provides IP65, IP66 and IP69 degrees of protection, making it suitable for demanding industrial environments where resistance to dust and water ingress is required.
Designed for fixed surface installation, the CZAP25L provides a protected enclosure for compatible size 66.16 Ilme connector inserts. Its high construction provides additional internal enclosure space, while the RAL 7040 grey finish, rubber gasket and wide -40 °C to +125 °C operating temperature range support dependable use across industrial machinery and automation applications.
Key Advantages
- Heavy-duty surface mounting housing for industrial connector assemblies.
- Size 66.16 format for compatible Ilme inserts and mating enclosures.
- High-construction design provides increased enclosure space.
- Single Pg16 cable entry for cable routing.
- Secure one-lever locking system with stainless-steel reinforced lever.
- High environmental protection of IP65 / IP66 / IP69 when correctly assembled.
- Wide operating temperature range of -40 °C to +125 °C.
Key Features
- Ilme IL-BRID series enclosure.
- Surface mounting configuration.
- Size 66.16.
- High construction.
- 1 lever closing system.
- Lever manufactured from polyamide with a stainless-steel core.
- Pg16 cable entry.
- Rubber sealing gasket.
- RAL 7040 grey finish.
- IP65, IP66 and IP69 protection ratings.
- Operating temperature range of -40 °C to +125 °C.
Protected Surface-Mounted Connectivity for Industrial Equipment
Surface mounting housings such as the Ilme CZAP25L provide a fixed enclosure for heavy-duty connector assemblies installed directly onto machinery, panels and industrial equipment. The size 66.16 format accommodates compatible Ilme inserts, while the high-construction housing and Pg16 cable entry provide a practical arrangement for terminating and routing the associated cable.
The reinforced single-lever closing system enables secure mating with a compatible enclosure, while the rubber gasket contributes to environmental sealing. With IP65, IP66 and IP69 protection available in the correctly assembled connector system, the CZAP25L is well suited to factory automation, machine building and other demanding industrial installations.
Typical Applications
- Industrial machinery and automated production equipment.
- Factory automation and control systems.
- Surface-mounted machine power and control interfaces.
- Industrial control panels and electrical equipment.
- Robotics and material handling systems.
- OEM machine building and heavy-duty connector assemblies.
