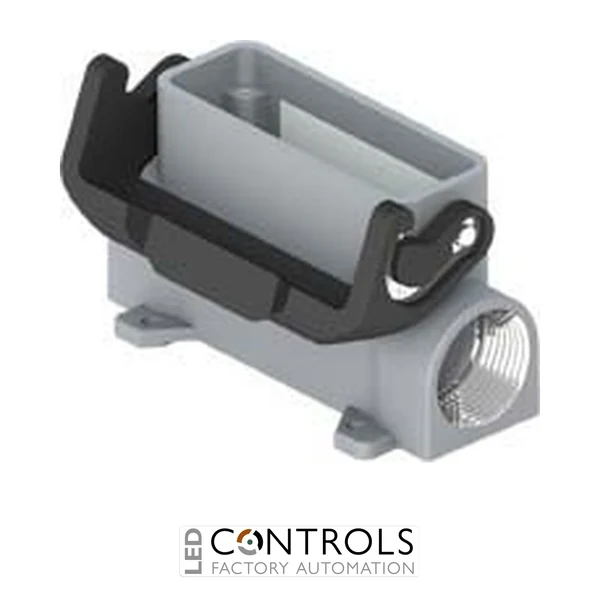

Why Choose the Ilme CZAP25L2 Surface Mounting Housing Size 66.16?
The Ilme CZAP25L2 is a robust surface mounting housing designed for heavy-duty industrial connector installations on machinery, control panels and electrical equipment. Part of the Ilme IL-BRID series, this high-construction housing is manufactured in size 66.16 and incorporates two Pg16 cable entries for applications requiring separate cable routes into a single connector enclosure.
The CZAP25L2 features one reinforced locking lever manufactured from polyamide with a stainless-steel core. When correctly assembled with compatible Ilme components and suitable cable glands, the enclosure provides IP65, IP66 and IP69 degrees of protection, making it suitable for demanding industrial environments where protection against dust and water ingress is required.
Designed for fixed surface installation, the CZAP25L2 provides a protected enclosure for compatible size 66.16 Ilme connector inserts. Its high construction provides additional internal space, while the dual Pg16 entries make it particularly useful where two cables need to enter the same heavy-duty connector assembly.
Key Advantages
- Heavy-duty surface mounting housing for industrial connector assemblies.
- Size 66.16 format for compatible Ilme inserts and mating enclosures.
- High-construction design provides increased internal enclosure space.
- 2 × Pg16 cable entries support separate cable routes into one housing.
- Secure single-lever locking system with stainless-steel reinforcement.
- Environmental protection of IP65 / IP66 / IP69 when correctly assembled.
- Wide operating temperature range of -40 °C to +125 °C.
Key Features
- Ilme IL-BRID series enclosure.
- Surface mounting configuration.
- Size 66.16.
- High construction.
- 1 lever closing system.
- Lever manufactured from polyamide with a stainless-steel core.
- Pg16 × 2 cable entry.
- Rubber sealing gasket.
- RAL 7040 grey finish.
- IP65, IP66 and IP69 protection ratings.
- Operating temperature range of -40 °C to +125 °C.
Dual-Cable Surface-Mounted Connectivity for Industrial Equipment
Surface mounting housings such as the Ilme CZAP25L2 provide the fixed enclosure for heavy-duty connector assemblies installed directly onto machinery, panels and industrial equipment. The size 66.16 format accommodates compatible Ilme inserts, while the high-construction body provides additional internal space for wiring and termination.
Unlike the single-entry CZAP25L, the CZAP25L2 incorporates two Pg16 cable entries, allowing two separate cables to enter the same enclosure. This configuration is useful for installations requiring divided cable routing or multiple incoming cable runs, while the reinforced IL-BRID lever and sealing system provide secure mating and environmental protection in demanding industrial applications.
Typical Applications
- Industrial machinery requiring dual cable entry.
- Factory automation and production equipment.
- Surface-mounted machine power and control interfaces.
- Industrial control panels and electrical equipment.
- Robotics and material handling systems.
- OEM machine building and heavy-duty connector assemblies.
