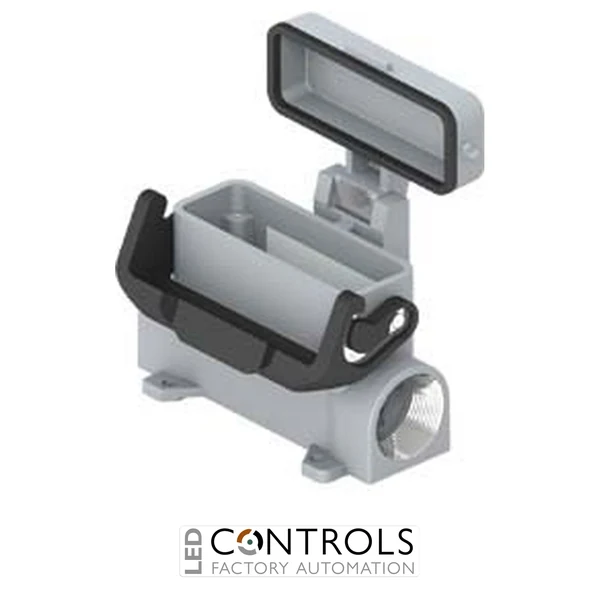

Why Choose the Ilme CZAP25LS Surface Mounting Housing?
The Ilme CZAP25LS is a heavy-duty surface mounting connector housing designed for robust industrial power, control and signal connections. Manufactured in the ILME size 66.16 format, it features a single IL-BRID locking lever and a high-construction aluminium enclosure for secure installation on machinery, panels and industrial equipment.
The CZAP25LS incorporates a single side Pg16 cable entry, providing a convenient route for incoming cable while maintaining a compact fixed-mount connector arrangement. A metal protective cover is supplied to protect the connector interface when the mating hood is disconnected, making the housing particularly useful on equipment requiring regular connection and disconnection.
When correctly assembled with suitable ILME connector components and an appropriate cable gland, the CZAP25LS provides high ingress protection for demanding environments. ILME specifies IP65 with the metal cover closed and lever locked, while a complete mated and locked connector assembly can provide IP66 and IP69 protection.
Key Advantages
- Heavy-duty surface mounting housing for fixed industrial connector installations.
- Compact size 66.16 format for compatible ILME inserts.
- Modern single IL-BRID locking lever provides secure mechanical coupling.
- Supplied with a durable metal protective cover.
- Single Pg16 side cable entry for straightforward cable routing.
- High-construction aluminium enclosure provides additional internal installation space.
- Supports IP65 / IP66 / IP69 protection according to assembly condition.
- Compatible with a broad selection of ILME size 66.16 inserts, including MIXO modular configurations.
Key Features
- ILME CZAP series heavy-duty connector housing.
- Surface mounting configuration.
- Size 66.16.
- High construction.
- 1 IL-BRID lever.
- Metal protective cover included.
- 1 × Pg16 cable entry.
- Side-entry cable configuration.
- Robust aluminium housing.
- IP65 protection with cover closed and locked.
- IP66 / IP69 protection with a compatible connector fully mated and locked.
Protected Surface-Mount Connectivity for Industrial Equipment
The Ilme CZAP25LS creates a fixed heavy-duty connector interface directly on a machine, panel or equipment surface. Its high construction provides space for connector wiring, while the side Pg16 cable entry allows the cable to enter the housing without requiring a separate bulkhead opening behind the connector.
The IL-BRID lever securely locks a compatible hood to the housing during operation. When the connector is disconnected, the supplied metal cover can be closed and locked to protect the exposed interface, making the CZAP25LS a practical solution for machinery requiring durable, maintainable and repeatedly detachable electrical connections.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Motor and drive system connections.
- Material handling and conveyor installations.
- Packaging and processing machinery.
- Industrial control and power distribution systems.
- MIXO modular connector assemblies.
- OEM machinery requiring detachable power, control or signal connections.
