Why Choose the Ilme CZAP25LS221 Surface Mounting Housing?

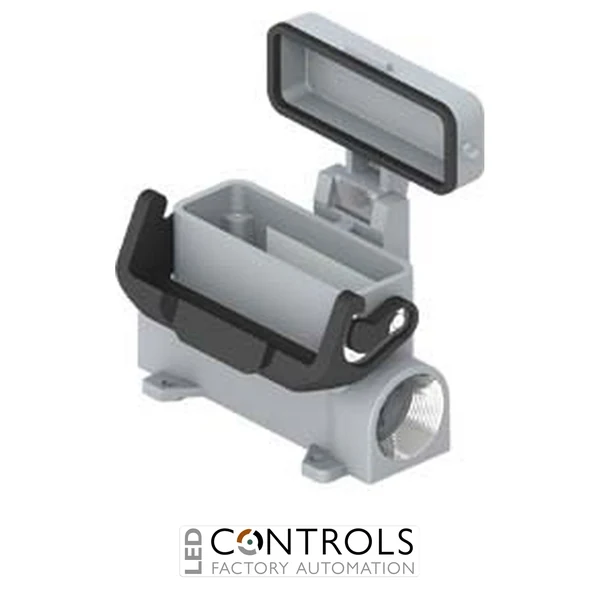

The Ilme CZAP25LS221 is a heavy-duty surface mounting connector housing from the ILME IL-BRID enclosure range, designed for secure fixed installation on industrial machinery, panels and equipment. It uses the size 66.16 format and features a single metal locking lever for reliable coupling with a compatible ILME mating hood.
This high-construction housing is equipped with 2 × Pg21 side cable entries, allowing two cables or wiring routes to enter the enclosure. The increased internal space provided by the high construction supports practical wiring arrangements, while the supplied metal protective cover shields the connector interface when the mating connector is disconnected.
Manufactured from robust aluminium, the CZAP25LS221 is designed for demanding industrial environments. ILME specifies IP65 / IP66 / IP69 protection according to the assembly condition, providing a durable enclosure solution for industrial power, control and signal connections that require two Pg21 cable entries.
Key Advantages
- Heavy-duty surface mounting housing for fixed industrial connector installations.
- Standard size 66.16 format for compatible ILME inserts.
- Single metal IL-BRID locking lever provides secure connector coupling.
- Supplied with a robust metal protective cover.
- 2 × Pg21 side cable entries support flexible cable routing.
- High-construction enclosure provides additional internal wiring space.
- Robust aluminium housing for demanding industrial service.
- Supports IP65 / IP66 / IP69 ingress protection according to assembly condition.
Key Features
- ILME IL-BRID series enclosure.
- Surface mounting configuration.
- Size 66.16.
- High construction.
- 1 metal locking lever.
- Metal protective cover included.
- 2 × Pg21 cable entries.
- Side cable-entry arrangement.
- Robust aluminium construction.
- IP65 / IP66 / IP69 protection according to connector condition.
- Designed for compatible ILME size 66.16 inserts and mating hoods.
Flexible Dual-Cable Entry for Industrial Connections
The Ilme CZAP25LS221 provides a fixed heavy-duty connector interface while allowing two Pg21 cable entries into the same surface mounting enclosure. This arrangement is particularly useful where cables need to enter and leave the connector housing, where separate power and control cable routes are required, or where machine wiring benefits from two independent cable-entry positions.
The single IL-BRID metal lever securely couples the housing with a compatible mating hood, while the supplied metal cover protects the interface when disconnected. Combined with its high-construction aluminium body and size 66.16 compatibility, the CZAP25LS221 provides a practical enclosure for maintainable industrial power, control and signal connections.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Motor and drive system connections.
- Material handling and conveyor installations.
- Packaging and processing machinery.
- Industrial control and power distribution systems.
- Machine installations requiring dual cable entries.
- OEM equipment with detachable power, control or signal connections.
