Why Choose the ILME CZAV15L16 Hood?

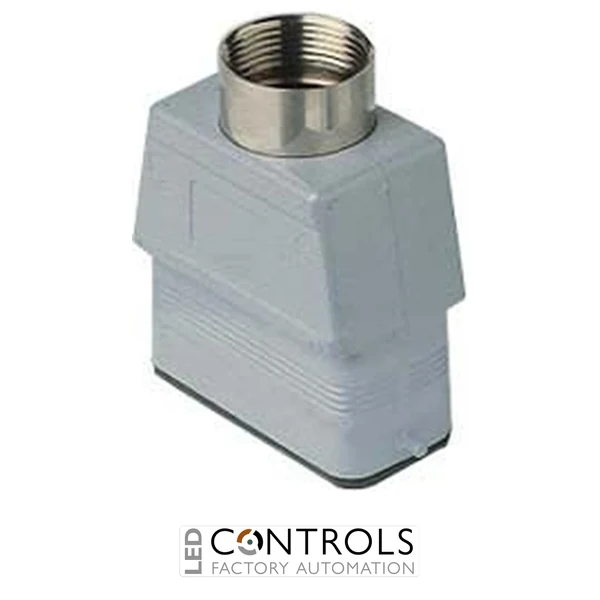

The ILME CZAV15L16 is a robust industrial connector hood from the ILME IL-BRID series, designed to protect compatible rectangular multipole connector inserts in demanding machinery, automation and electrical applications. Its high-construction design provides additional internal space while the two-peg closing arrangement enables secure mating with a compatible lever-equipped housing.
The CZAV15L16 features a top cable entry with a PG16 adapter, providing convenient cable routing directly into the top of the hood. This configuration is particularly useful for machine wiring and industrial installations where cables approach the connector vertically.
Designed in ILME size 49.16, the CZAV15L16 provides IP66 / IP67 / IP69 protection when correctly assembled with compatible components. Its grey enclosure, NBR gasket and broad -40 °C to +125 °C operating temperature range make it suitable for reliable service in demanding industrial environments.
Key Advantages
- Robust IL-BRID industrial multipole connector hood.
- Size 49.16 format for compatible ILME connector components.
- Two-peg closing arrangement for secure connector mating.
- Top-entry configuration for convenient vertical cable routing.
- PG16 cable entry with adapter for compatible cable glands.
- High-construction design provides additional internal connection space.
- IP66 / IP67 / IP69 protection when correctly assembled.
Key Features
- ILME IL-BRID series connector hood.
- Size 49.16 enclosure format.
- Two closing pegs.
- Top cable entry with adapter.
- PG16 entry size.
- High-construction enclosure design.
- RAL 7040 grey finish.
- NBR gasket for environmental sealing.
- Operating temperature range from -40 °C to +125 °C.
- Suitable for compatible ILME rectangular multipole connector assemblies.
Reliable Protection for Industrial Connector Assemblies
Industrial connector hoods provide mechanical and environmental protection for electrical inserts and terminations while forming a secure interface between cable-mounted and equipment-mounted connector components. High ingress protection is particularly important for machinery and industrial equipment exposed to dust, moisture or intensive cleaning processes.
The ILME CZAV15L16 combines a high-construction size 49.16 enclosure with a top-entry PG16 adapter, making it a practical choice where vertical cable routing and additional internal wiring space are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and machine wiring.
- Conveyor and material handling equipment.
- Motor, actuator and sensor connection assemblies.
- Industrial installations requiring top-entry cable routing.
