Why Choose the ILME CZAV15L21 Hood?

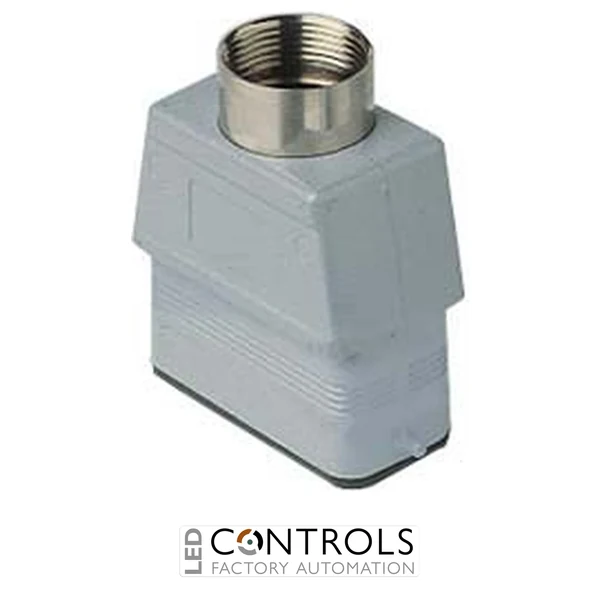

The ILME CZAV15L21 is a robust industrial connector hood from the ILME IL-BRID series, designed to protect compatible rectangular multipole connector inserts in machinery, automation and industrial electrical installations. Its high-construction format provides additional internal space, while the two-peg closing arrangement enables secure mating with a compatible ILME lever-equipped housing.
The CZAV15L21 features a top cable entry with a PG21 adapter, providing a practical solution for installations where the incoming cable approaches vertically. The adapter configuration enables connection of compatible PG21 cable-entry components while maintaining a durable industrial enclosure assembly.
Designed in ILME size 49.16, the CZAV15L21 provides IP66 / IP67 / IP69 protection when correctly assembled with compatible components. Its RAL 7040 grey finish, NBR gasket and broad -40 °C to +125 °C operating temperature range make it suitable for demanding machinery and automation environments.
Key Advantages
- Robust IL-BRID industrial multipole connector hood.
- Size 49.16 format for compatible ILME connector components.
- Two-peg closing arrangement for secure connector mating.
- Top-entry configuration supports convenient vertical cable routing.
- PG21 cable entry with adapter for compatible cable-entry components.
- High-construction design provides additional internal connection space.
- IP66 / IP67 / IP69 protection when correctly assembled.
Key Features
- ILME IL-BRID series connector hood.
- Size 49.16 enclosure format.
- Two closing pegs.
- Top cable entry with adapter.
- PG21 cable entry size.
- High-construction enclosure design.
- RAL 7040 grey finish.
- NBR gasket for environmental sealing.
- Operating temperature range from -40 °C to +125 °C.
- 150 g product weight.
- Suitable for compatible ILME rectangular multipole connector assemblies.
Reliable Protection for Industrial Connector Assemblies
Industrial connector hoods protect electrical inserts and terminations while providing a secure mechanical interface between cable-mounted and equipment-mounted connector components. A correctly assembled enclosure helps safeguard electrical connections against dust, moisture and other environmental conditions encountered in industrial machinery.
The ILME CZAV15L21 combines a high-construction size 49.16 enclosure with a top-entry PG21 adapter, making it particularly suitable where vertical cable routing, additional internal connection space and high ingress protection are required.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and machine wiring.
- Conveyor and material handling equipment.
- Motor, actuator and equipment connection assemblies.
- Industrial installations requiring top-entry cable routing.
