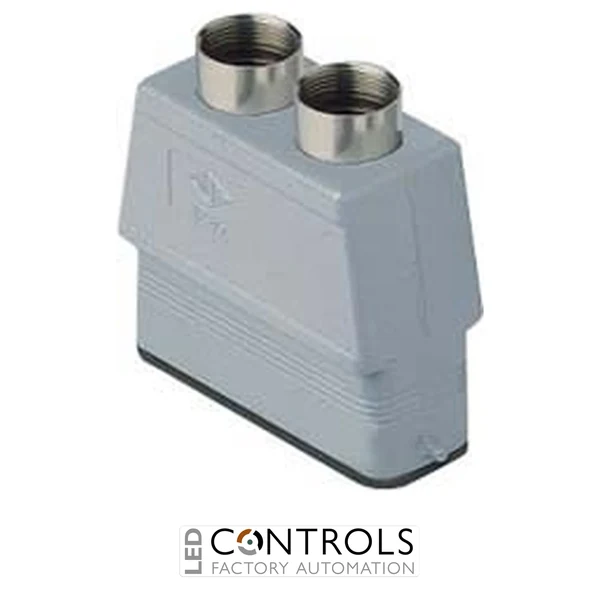

Why Choose the ILME CZAV25L216 Top-Entry Hood?
The ILME CZAV25L216 is a robust heavy-duty connector hood designed for industrial multipole connector assemblies. Built in the size 66.16 format, it combines a high-construction enclosure with two locking pegs, providing a secure cable-side housing for compatible ILME inserts and mating connector components.
A key feature of the CZAV25L216 is its dual PG16 top-entry arrangement. The two cable-entry points allow separate cables or cable groups to be routed into the same connector hood, providing additional flexibility when wiring machinery, control systems and other industrial equipment.
The durable metal construction helps protect the connector insert and terminations against mechanical stresses encountered in industrial environments. When correctly assembled with compatible ILME components, suitable cable glands and the corresponding mating housing, the CZAV25L216 forms part of a secure and serviceable heavy-duty connector system.
Key Advantages
- Heavy-duty size 66.16 connector hood for industrial applications.
- Two PG16 top cable entries provide flexible cable-routing options.
- Two locking pegs for secure coupling with compatible lever-equipped housings.
- High-construction design provides additional internal wiring space.
- Robust metal enclosure protects the connector insert and cable terminations.
- Suitable for detachable power, control and signal connections on industrial equipment.
Key Features
- ILME CZAV25L216 connector hood.
- Size 66.16 connector format.
- High-construction hood design.
- Top-entry cable orientation.
- 2 × PG16 cable entries.
- Two locking pegs.
- Designed for compatible ILME heavy-duty connector assemblies.
- Suitable for industrial cable-side connector applications.
Flexible Dual-Cable Top Entry
The dual-entry configuration distinguishes the ILME CZAV25L216 from conventional single-entry connector hoods. Its two PG16 top entries enable two cables to enter the same connector enclosure independently, which can simplify installations where separate power, control or signal cable groups terminate within one multipole connector.
The high-construction hood provides useful internal space for cable preparation and termination. Combined with the appropriate insert, glands and mating housing, its two locking pegs allow the connector assembly to be securely coupled while remaining readily detachable for equipment installation, servicing and maintenance.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Control-panel and enclosure connections.
- Motor and drive wiring systems.
- Material handling and conveyor equipment.
- Industrial cable harness assemblies.
- Applications requiring two cables to enter one connector hood.
