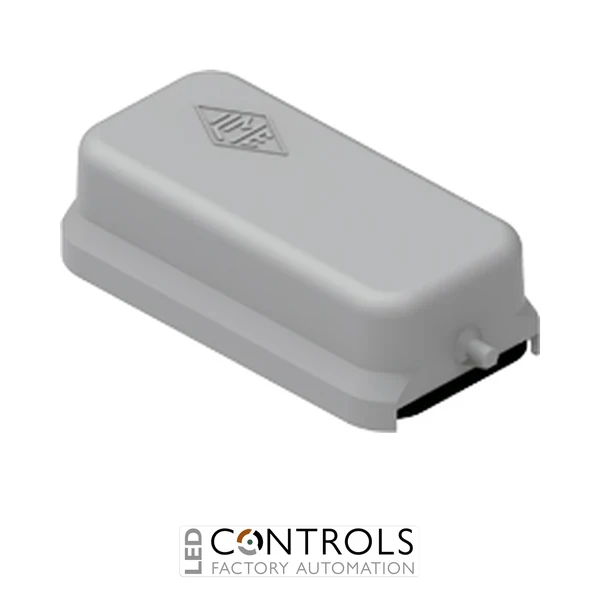

Why Choose the Ilme CZC15L Metal Cover with 2 Pegs Size 49.16?
The Ilme CZC15L is a robust metal protective cover designed for compatible Ilme heavy-duty industrial connector housings. Part of the Ilme IL-BRID series, this cover is manufactured for size 49.16 connector assemblies and features 2 locking pegs for use with corresponding single-lever housings.
The CZC15L incorporates an NBR sealing gasket and an eyelet, allowing the connector interface to be protected when it is not mated to a hood. When correctly fitted to a compatible enclosure, the cover provides IP66, IP67 and IP69 degrees of protection, helping shield the connector interface against dust and water ingress in demanding industrial environments.
With its durable aluminium construction, RAL 7040 grey finish and wide operating temperature range of -40 °C to +125 °C, the CZC15L is well suited to machinery, automation equipment and control-panel installations requiring reliable protection for disconnected heavy-duty connector interfaces.
Key Advantages
- Purpose-designed protective cover for size 49.16 Ilme connector housings.
- 2 locking pegs for compatible single-lever enclosure systems.
- Integrated NBR sealing gasket supports environmental protection.
- Provides IP66 / IP67 / IP69 protection when correctly fitted to a compatible enclosure.
- Integrated eyelet assists with retaining the cover at the installation.
- Wide operating temperature range of -40 °C to +125 °C.
Key Features
- Ilme IL-BRID series protective cover.
- Size 49.16 enclosure format.
- 2-peg closing configuration.
- Designed for compatible single-lever housings.
- Supplied with gasket and eyelet.
- NBR gasket material.
- Robust aluminium construction.
- RAL 7040 grey finish.
- IP66, IP67 and IP69 protection ratings.
- Operating temperature range of -40 °C to +125 °C.
Protection for Unmated Industrial Connector Interfaces
Protective covers such as the Ilme CZC15L are used to close compatible heavy-duty connector housings when the mating connector is disconnected. Covering the exposed interface helps prevent dust, water and other environmental contaminants from reaching the connector area while machinery or equipment is disconnected, stored or undergoing maintenance.
The CZC15L's 2-peg configuration is designed to engage with the lever of a compatible size 49.16 single-lever housing. Its integral NBR gasket supports the enclosure sealing system, while the eyelet provides a convenient means of retaining the cover near the connector so that it remains available when required.
Typical Applications
- Protecting unmated Ilme size 49.16 connector housings.
- Industrial machinery and automated production equipment.
- Factory automation and control systems.
- Industrial control panels and electrical equipment.
- Robotics and material handling machinery.
- OEM machine building and heavy-duty connector assemblies.
