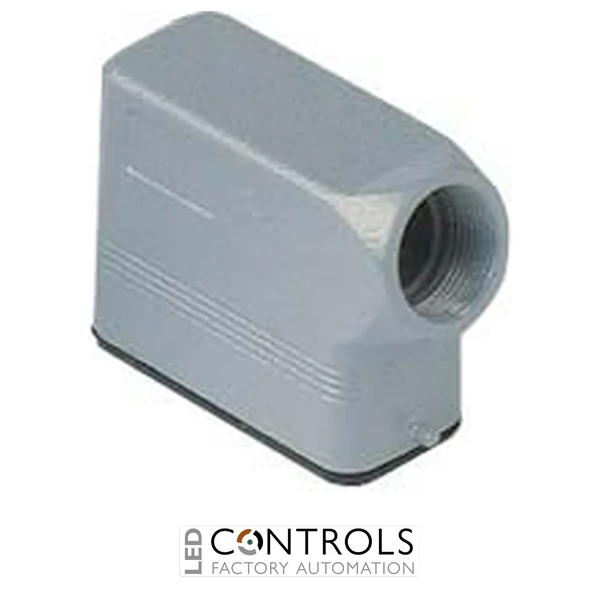

Why Choose the Ilme CZO15L Hood?
The Ilme CZO15L is a heavy-duty connector hood from the IL-BRID series, designed for secure cable-side connections in industrial machinery, automation and control systems. It uses the compact size 49.16 format and incorporates 2 locking pegs for coupling with a compatible ILME housing equipped with a locking lever.
A Pg16 side cable entry allows the cable to enter laterally, making the CZO15L particularly useful where installation height is restricted or where side routing provides a cleaner cable path. The enclosure includes an NBR gasket and is finished in RAL 7040 grey for integration with compatible ILME heavy-duty connector components.
When correctly assembled with suitable mating components and cable-entry accessories, the CZO15L provides IP66, IP67 and IP69 protection. Its wide -40 °C to +125 °C operating temperature range and recognised industrial approvals make it suitable for demanding connection systems requiring reliable environmental protection.
Key Advantages
- Compact size 49.16 hood for heavy-duty industrial connectors.
- 2 locking pegs provide secure coupling with a compatible lever-equipped housing.
- Pg16 side cable entry supports convenient lateral cable routing.
- Provides IP66 / IP67 / IP69 protection when correctly assembled.
- Wide operating temperature range of -40 °C to +125 °C.
- Integrated NBR gasket supports environmental sealing.
- Approved to CQC, DNV and BV requirements.
- UL and cUL recognised for industrial connector applications.
Key Features
- ILME IL-BRID series connector hood.
- Size 49.16.
- 2 locking pegs.
- Side cable entry.
- Pg16 cable-entry thread.
- IP66 / IP67 / IP69 degree of protection.
- NBR gasket.
- RAL 7040 grey finish.
- Net weight of approximately 70 g.
- -40 °C to +125 °C operating temperature range.
- RoHS compliant and free from declared REACH SVHC substances.
Compact Side-Entry Connectivity for Industrial Equipment
The Ilme CZO15L provides a cable-side enclosure for compatible size 49.16 connector inserts. Its Pg16 opening is positioned on the side of the hood, allowing cables to be routed laterally rather than vertically above the connector. This can reduce overall installation height and simplify cable management in confined machinery and panel installations.
The hood's two locking pegs engage with the lever on a compatible ILME housing to create a secure detachable connection. When the complete connector is correctly assembled and locked, the IP66/IP67/IP69 protection makes the CZO15L suitable for industrial installations where resistance to dust, water and demanding environmental conditions is required.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Control and instrumentation connections.
- Material handling and conveyor systems.
- Packaging and processing machinery.
- Motor and drive system connections.
- OEM equipment with limited installation height.
- Industrial power, control and signal connector assemblies.
