Why Choose the Ilme CZO25L Hood?

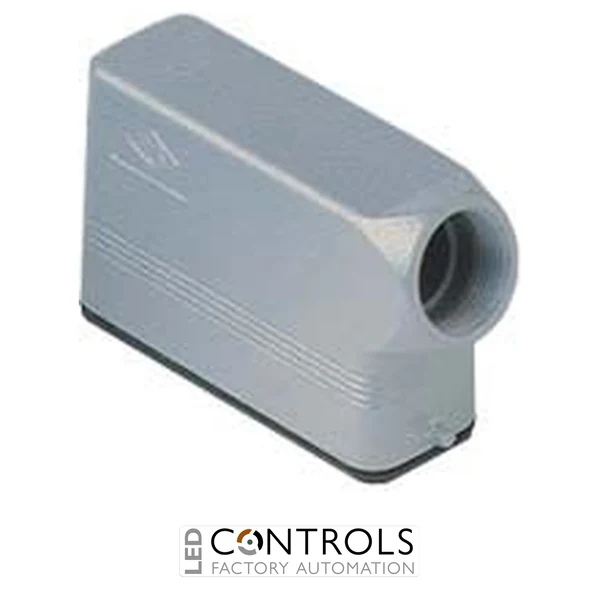

The Ilme CZO25L is a heavy-duty industrial connector hood designed for cable-side connections on machinery, automation systems and electrical equipment. It uses the ILME size 66.16 format and features 2 locking pegs for secure coupling with a compatible ILME housing equipped with the corresponding locking lever.
A Pg16 side cable entry allows the cable to leave the connector laterally rather than vertically. This side-entry arrangement is particularly useful where installation height is restricted, where cables need to follow the surface of machinery, or where a right-angle cable route provides more effective cable management.
The CZO25L forms part of ILME's robust metal enclosure system for heavy-duty multipole connectors. When correctly assembled with a compatible insert, mating housing, cable gland and associated components, it provides a protected detachable interface suitable for industrial power, control and signal connections.
Key Advantages
- Heavy-duty size 66.16 connector hood for industrial applications.
- 2 locking pegs provide secure coupling with a compatible lever-equipped housing.
- Pg16 side entry supports convenient lateral cable routing.
- Side-entry configuration helps reduce the installation height above the connector.
- Robust metal enclosure construction for demanding machinery applications.
- Compatible with suitable ILME size 66.16 inserts and mating housings.
- Suitable for detachable industrial power, control and signal connections.
Key Features
- ILME CZO series heavy-duty connector hood.
- Size 66.16 enclosure format.
- 2 locking pegs.
- Side-entry configuration.
- Pg16 threaded cable entry.
- Metal enclosure construction.
- Designed to mate with a compatible lever-equipped ILME housing.
- Suitable for compatible heavy-duty multipole connector inserts.
- Designed for industrial machinery and automation installations.
Space-Efficient Side-Entry Industrial Connectivity
The Ilme CZO25L encloses the cable-side insert of a compatible size 66.16 heavy-duty connector assembly. Its side-facing Pg16 cable entry changes the cable routing direction by approximately 90 degrees relative to a conventional top-entry hood, helping installers manage cables efficiently around machine frames, panels and confined equipment spaces.
The hood's two locking pegs engage with the locking lever of a compatible ILME housing to create a secure detachable connection. This allows machinery to be connected and disconnected without permanently terminating individual conductors each time, simplifying installation, servicing, transportation and modular equipment replacement.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Control and instrumentation connections.
- Motor and drive system connections.
- Material handling and conveyor systems.
- Packaging and processing machinery.
- OEM equipment with restricted installation height.
- Industrial power, control and signal connector assemblies.
