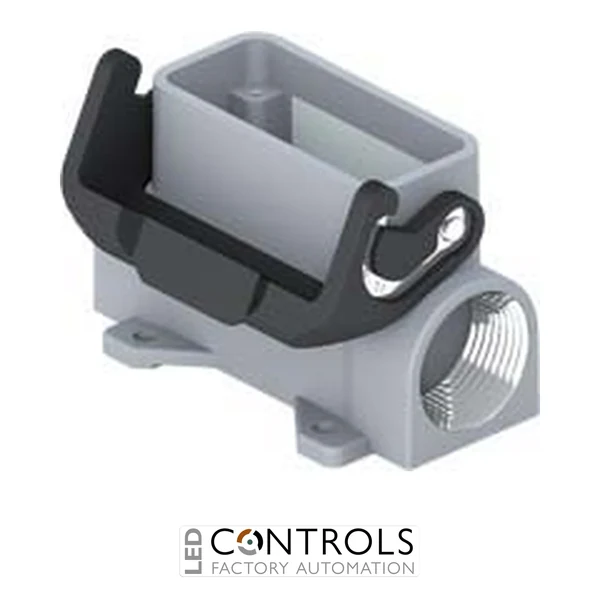

Why Choose the ILME CZP15L21 Surface Mounting Housing?
The ILME CZP15L21 is a robust surface mounting housing for heavy-duty industrial multipole connector installations. Part of the ILME IL-BRID series, it uses the standard size 49.16 connector format and provides a secure fixed connection point for compatible ILME inserts used in machinery, automation and industrial electrical systems.
The CZP15L21 features a single IL-BRID locking lever and a Pg21 cable entry. Its surface-mounting configuration allows the housing to be installed directly onto machinery, panels or equipment, while the cable entry provides a practical route for permanent wiring into the connector assembly.
Designed for demanding industrial environments, the CZP15L21 provides IP65 / IP66 / IP69 protection when correctly assembled with compatible ILME components. A wide -40 °C to +125 °C operating temperature range, durable enclosure construction and the IL-BRID locking system make it a dependable choice for industrial power, control and signal connections.
Key Advantages
- Heavy-duty surface mounting housing for size 49.16 connector systems.
- Single IL-BRID lever provides secure and convenient connector locking.
- Pg21 cable entry supports straightforward industrial cable routing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Surface-mounted design provides a fixed connection point on machinery, panels and equipment.
- Wide -40 °C to +125 °C operating temperature range for demanding environments.
Key Features
- ILME IL-BRID series connector housing.
- Size 49.16 multipole connector format.
- Surface mounting configuration.
- One IL-BRID locking lever.
- Single Pg21 cable entry.
- Lever manufactured from polyamide with a stainless-steel core.
- Rubber gasket for environmental sealing.
- RAL 7040 grey finish.
Reliable Surface-Mounted Connectivity for Industrial Equipment
Surface mounting housings such as the ILME CZP15L21 create a fixed and protected connection point on machinery, control systems and industrial equipment. Permanent cabling can enter through the Pg21 opening while a compatible cable-side connector can be connected or disconnected as required, simplifying equipment installation and servicing.
The IL-BRID locking system combines a polyamide lever with a stainless-steel core to provide dependable mechanical engagement. Together with the size 49.16 format and high ingress-protection capability, the CZP15L21 provides a practical enclosure solution for power, control and signal connections in demanding industrial applications.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic equipment.
- Control cabinets and electrical panels.
- Production and processing machinery.
- Heavy-duty multipole connector assemblies.
- Industrial power, control and signal connections.
