Why Choose the ILME CZP15LS221 Surface Mounting Housing with Cover?

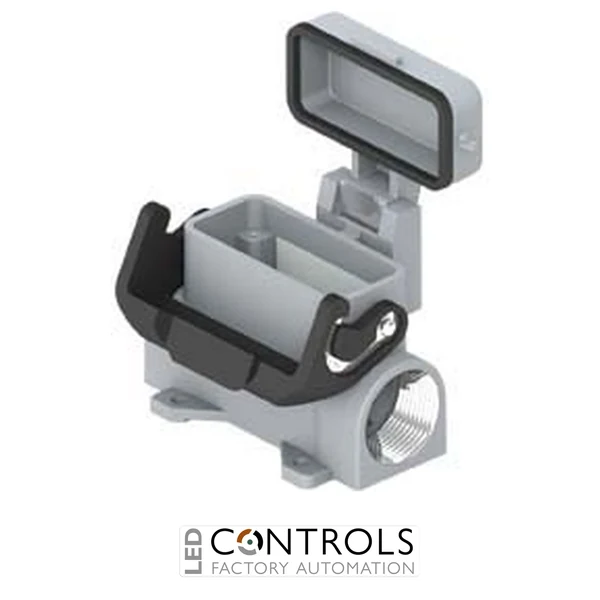

The ILME CZP15LS221 is a robust surface mounting housing with metal protective cover for heavy-duty industrial multipole connector installations. Part of the ILME IL-BRID series, it uses the standard size 49.16 connector format and provides a secure fixed connection point for compatible ILME inserts used in machinery, automation and industrial electrical systems.
The CZP15LS221 features a single IL-BRID locking lever and two Pg21 cable entries, providing flexible routing for installations requiring two cables to enter the housing. The included metal cover protects the connector interface when the mating connector is disconnected, making this version particularly useful where equipment may remain unplugged during servicing, transport or periods of inactivity.
Designed for demanding industrial environments, the CZP15LS221 provides IP65 / IP66 / IP69 protection when correctly assembled. Its durable construction, wide -40 °C to +125 °C operating temperature range and IL-BRID locking system make it a dependable enclosure solution for industrial power, control and signal connections.
Key Advantages
- Heavy-duty surface mounting housing for size 49.16 connector systems.
- Supplied with metal protective cover to protect the connector interface when disconnected.
- Single IL-BRID locking lever provides secure and convenient connector mating.
- Two Pg21 cable entries provide flexible routing for dual-cable installations.
- IP65 / IP66 / IP69 protection for demanding industrial environments.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- ILME IL-BRID series connector housing.
- Size 49.16 multipole connector format.
- Surface mounting configuration.
- One IL-BRID lever.
- 2 × Pg21 cable entries.
- Supplied with metal cover.
- Lever manufactured from polyamide with a stainless-steel core.
- Rubber gasket for environmental sealing.
- RAL 7040 grey finish.
Protected Surface-Mounted Connectivity for Industrial Equipment
Surface mounting housings such as the ILME CZP15LS221 provide a fixed and protected connection point on machinery, control systems and industrial equipment. The two Pg21 cable entries allow separate cables to be routed into the same connector housing, making the enclosure useful where circuits or cable groups need to approach the connector from different routes.
The included metal cover adds protection when the mating connector is removed, helping shield the connector interface from environmental exposure during servicing or equipment downtime. Combined with the IL-BRID lever system and size 49.16 format, the CZP15LS221 provides a practical solution for reliable and serviceable industrial connector installations.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic equipment.
- Control cabinets and electrical systems.
- Production and processing machinery.
- Heavy-duty multipole connector assemblies.
- Dual-cable power, control and signal connections.
