Why Choose the ILME CZV15LG Hood?

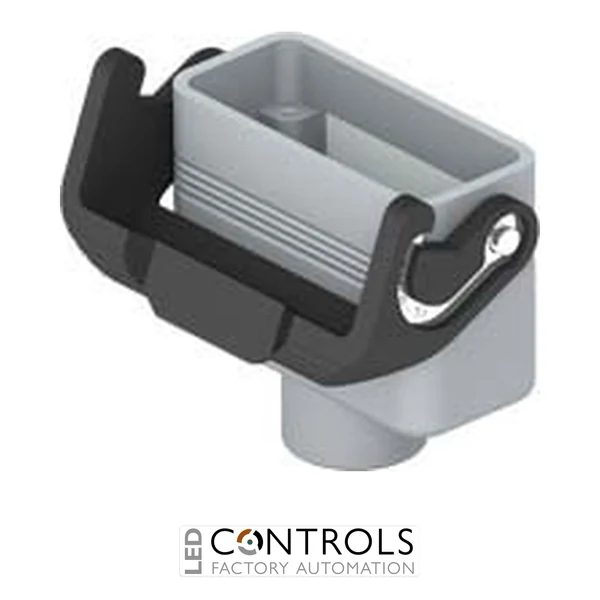

The ILME CZV15LG is a robust industrial multipole connector hood designed to provide reliable protection for electrical connections in machinery, automation and industrial installations. As part of the ILME IL-BRID series, it combines a compact size 49.16 enclosure with a single-lever locking system for secure and convenient connector coupling.
The CZV15LG features one IL-BRID locking lever incorporating a polyamide handle and stainless-steel core, providing a durable closure mechanism for compatible connector components. Its Pg13.5 top cable entry enables straight cable routing through the top of the hood, making it particularly suitable for installations where cable orientation and available space are important.
With IP66, IP67 and IP69 degrees of protection when correctly assembled and coupled with suitable components, the CZV15LG is engineered for demanding industrial environments. Its operating temperature range of -40 °C to +125 °C, rubber gasket and RAL 7040 grey finish provide a dependable enclosure solution for compatible ILME heavy-duty connector systems.
Key Advantages
- Robust industrial multipole connector hood for machinery and automation applications.
- Size 49.16 enclosure format for compatible ILME connector inserts.
- Single IL-BRID locking lever provides secure connector coupling.
- Pg13.5 top cable entry supports convenient straight cable routing.
- IP66 / IP67 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range.
- Durable lever construction with polyamide and stainless-steel components.
Key Features
- ILME IL-BRID series connector hood.
- Size 49.16 enclosure format.
- One locking lever for secure connector retention.
- Pg13.5 top cable entry.
- IP66 / IP67 / IP69 degree of protection.
- -40 °C to +125 °C operating temperature range.
- Lever manufactured from polyamide with a stainless-steel core.
- Rubber gasket for environmental sealing.
- RAL 7040 grey finish.
- Suitable for compatible ILME heavy-duty multipole connector systems.
Reliable Connector Protection for Industrial Equipment
Heavy-duty connector hoods such as the ILME CZV15LG protect electrical inserts and contacts while providing a secure cable interface for removable industrial connections. The top-entry configuration allows cables to enter directly through the upper section of the hood, helping simplify cable routing in machinery, control systems and other space-conscious installations.
The IL-BRID lever system provides a secure mechanical connection while supporting convenient coupling and uncoupling during installation and maintenance. When correctly assembled with compatible ILME inserts, housings and suitable cable-entry components, the CZV15LG provides high levels of ingress protection for dependable operation in demanding industrial environments.
Typical Applications
- Industrial machinery and automation equipment.
- Electrical control systems and industrial installations.
- Manufacturing and production machinery.
- Material handling and conveyor systems.
- Heavy-duty multipole connector assemblies.
- OEM machinery and equipment manufacturing.
