Why Choose the ILME CZV25L Hood?

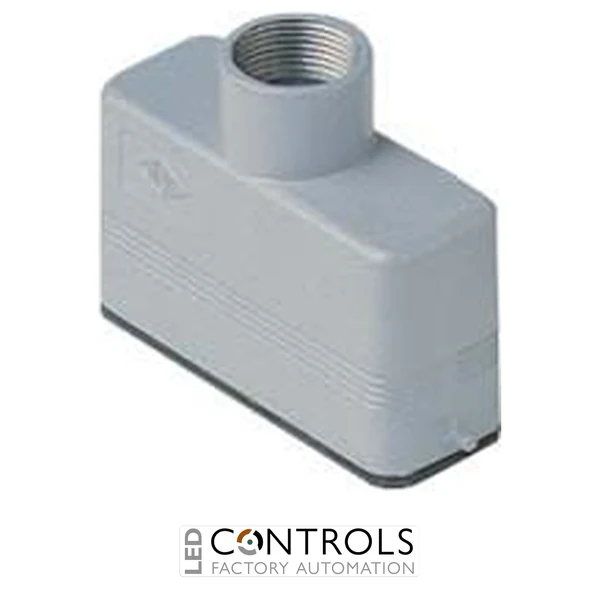

The ILME CZV25L is a robust heavy-duty connector hood from the IL-BRID series, designed for compatible industrial multipole connector assemblies. Its size 66.16 format and top Pg16 cable entry provide a compact and practical solution for routing cable directly into detachable connector assemblies used on machinery, control systems and automation equipment.
The CZV25L features two locking pegs, allowing it to mate securely with compatible ILME housings equipped with a single locking lever. The enclosure uses an NBR gasket and is finished in RAL 7040 grey, providing a durable connector enclosure designed for repeated use in industrial environments.
When correctly assembled with compatible components and an appropriate cable gland, the CZV25L provides IP66, IP67 and IP69 protection. Its wide -40 °C to +125 °C operating temperature range further supports reliable use across demanding machinery, automation and industrial electrical installations.
Key Advantages
- Size 66.16 hood for compatible ILME heavy-duty connector assemblies.
- Top Pg16 cable entry provides direct and compact cable routing.
- Two locking pegs for secure mating with compatible single-lever housings.
- IP66, IP67 and IP69 protection when correctly assembled.
- Wide -40 °C to +125 °C operating temperature range.
- Compatible with several established ILME multipole insert families.
Key Features
- ILME IL-BRID series.
- Heavy-duty connector hood.
- Size 66.16.
- 2 locking pegs.
- Top cable entry.
- Pg16 cable entry.
- NBR gasket.
- RAL 7040 grey finish.
- IP66 / IP67 / IP69 degree of protection.
- -40 °C to +125 °C operating temperature range.
- RoHS compliant.
- CQC, DNV and BV certified.
Reliable Cable Connections for Industrial Equipment
A heavy-duty connector hood provides mechanical and environmental protection around the cable-side insert while maintaining a detachable connection between machinery, control panels and peripheral equipment. The top-entry Pg16 configuration of the CZV25L is particularly useful where the cable needs to leave the connector in line with the enclosure rather than through a side entry.
The ILME CZV25L combines secure two-peg locking with an NBR sealing gasket and high ingress protection. When mated and correctly assembled with compatible ILME components and a suitable cable gland, its IP66, IP67 and IP69 ratings help protect electrical connections against dust and water in demanding industrial environments.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and machine enclosures.
- Motor, drive and actuator connection systems.
- Conveyor and material handling equipment.
- OEM equipment requiring detachable multipole connections.
