Why Choose the ILME CZV25LG Hood?

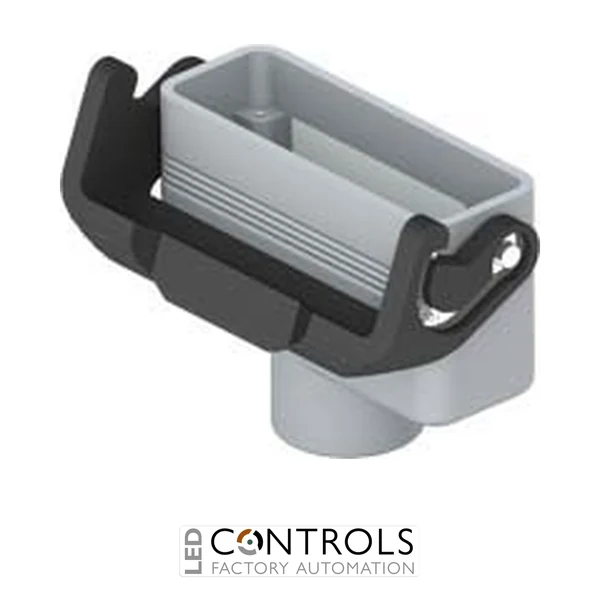

The ILME CZV25LG is a heavy-duty connector hood from the ILME IL-BRID series, designed for compatible industrial multipole connector assemblies. Its size 66.16 format and top Pg16 cable entry provide a compact cable-side enclosure for machinery, automation systems, control equipment and other industrial electrical applications.
Unlike the two-peg CZV25L version, the CZV25LG incorporates one IL-BRID locking lever, allowing it to engage securely with compatible mating enclosures equipped with locking pegs. The hood is manufactured from aluminium, combining mechanical strength with a practical enclosure design for frequently connected and disconnected industrial equipment.
When correctly mated and assembled with compatible ILME components and an appropriate cable gland, the CZV25LG provides IP66, IP67 and IP69 protection. Its robust construction and straight top-entry cable arrangement make it a dependable choice for protected detachable connections across demanding industrial machinery and installations.
Key Advantages
- Size 66.16 hood for compatible ILME heavy-duty connector assemblies.
- Top Pg16 cable entry provides direct cable routing from the connector.
- Single IL-BRID locking lever provides secure mechanical engagement.
- Durable aluminium construction for industrial environments.
- IP66, IP67 and IP69 protection when correctly assembled.
- Suitable for machinery and equipment requiring reliable detachable multipole connections.
Key Features
- ILME IL-BRID series.
- Heavy-duty connector hood.
- Size 66.16.
- 1 locking lever.
- Top cable entry.
- Pg16 cable entry.
- Aluminium construction.
- IP66 / IP67 / IP69 degree of protection when correctly assembled.
- Designed for compatible industrial multipole connector inserts.
- Suitable for repeated connection and disconnection in industrial equipment.
Reliable Cable Connections for Industrial Equipment
Heavy-duty connector hoods protect the cable-side insert and termination area while providing a detachable interface between machinery, control systems and peripheral equipment. The top-entry Pg16 configuration of the CZV25LG allows the cable to leave the connector in line with the enclosure, making it particularly useful where straight cable routing is preferred.
The ILME CZV25LG combines a robust aluminium enclosure with a single IL-BRID locking lever and high ingress protection. When correctly mated with compatible components, the IP66, IP67 and IP69 ratings support reliable connector installations where protection against dust and water is important.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and machine enclosures.
- Motor, drive and actuator connections.
- Conveyor and material handling systems.
- OEM equipment requiring detachable multipole connections.
