Why Choose the EMAS EB004CP00 4 Pole 10 A Female Insert?

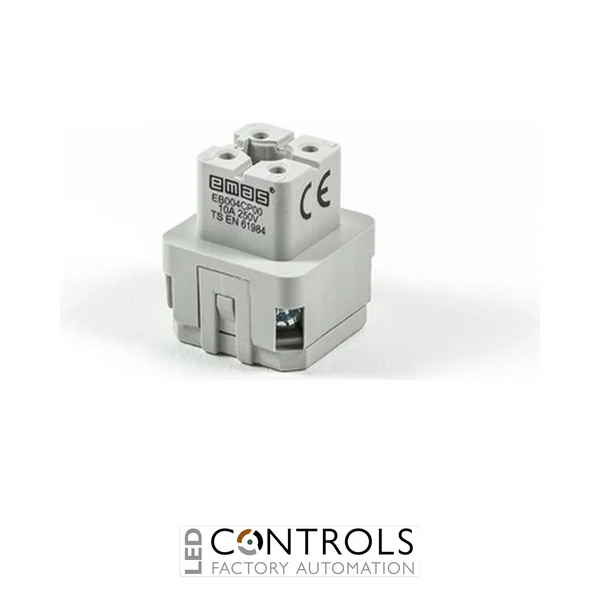

The EMAS EB004CP00 is a robust 4-pole female multipole connector insert designed for reliable electrical connections in industrial machinery, control equipment and automation systems. As part of the EMAS EB Series, this insert socket provides a compact and dependable interface for applications requiring removable multipole connections.
Designed for an operating current of 10 A, the EB004CP00 combines reliable electrical performance with a durable construction suitable for repeated connection cycles. The insert is manufactured in accordance with TS EN 61984 and has an insulation voltage of 690 V with a rated impulse withstand voltage of 6 kV.
The EB004CP00 is the female insert socket within the 4-pole EB connector configuration and features contact identification from 1–4. It can be combined with compatible EMAS EB Series hoods and housings to create complete industrial connector assemblies for control panels, machinery and electrical installations.
Key Advantages
- Reliable 4-pole female multipole connector insert for industrial applications.
- 10 A operating current for control and power connection duties.
- High 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage for robust industrial performance.
- Wide -40 to +125 °C operating temperature range.
- Compatible with appropriate EMAS EB Series connector hoods and housings.
Key Features
- EMAS EB Series multipole connector insert.
- 4-pole female insert socket configuration.
- 10 A operating current.
- Contacts identified 1–4.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC-15 utilisation category.
- Minimum mechanical life of 500 operating cycles.
- Designed in accordance with TS EN 61984.
Multipole connector inserts such as the EMAS EB004CP00 provide a convenient method of connecting multiple electrical circuits through a single detachable connector assembly. This simplifies equipment installation, servicing and replacement compared with individually disconnecting multiple conductors.
The EB004CP00 female insert is designed to work as part of an EMAS EB Series connector assembly. When paired with the appropriate mating insert, hood and housing, it provides a practical connection solution for industrial machinery, automation equipment, control panels and other electrical installations requiring dependable removable connections.
Typical Applications
- Industrial machinery and production equipment.
- Electrical control panels and cabinets.
- Factory automation systems.
- Machine building and OEM equipment.
- Control and instrumentation connections.
- Industrial equipment requiring detachable multipole connections.
