Why Choose the EMAS EB016CF00 16-Pole Male Insert?

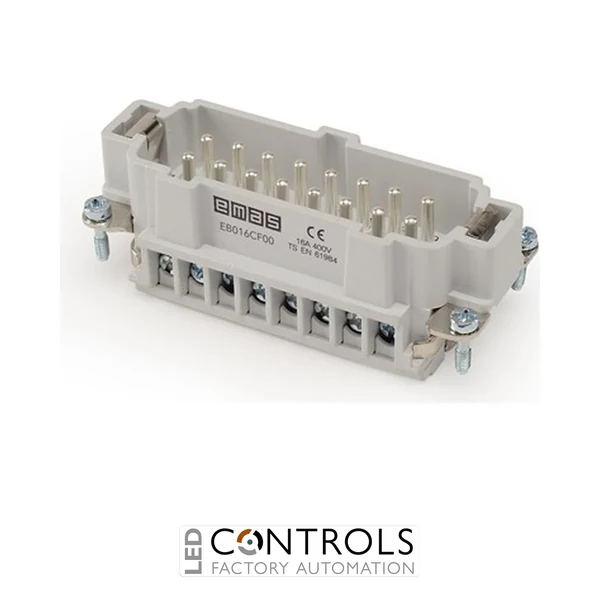

The EMAS EB016CF00 is a 16-pole male multipole connector insert rated at 16 A, designed for reliable detachable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EB Series, this male insert provides contacts numbered 1–16 and is designed for installation within compatible EMAS heavy-duty connector hoods and housings.
The EB016CF00 provides 16 male contacts with an operating current rating of 16 A. Its electrical insulation system is rated at 690 V with an impulse withstand voltage of 6 kV, providing dependable performance for industrial multipole connections where multiple circuits need to be combined into a single removable connector assembly.
Manufactured in accordance with TS EN 61984, the EB016CF00 offers a minimum mechanical life of 500 mating cycles, an insulation resistance of at least 10 MΩ at 500 V DC and an operating temperature range from -40 °C to +125 °C. These characteristics make it a practical choice for serviceable power and control connections in demanding industrial environments.
Key Advantages
- 16-pole male insert for EMAS heavy-duty multipole connector systems.
- 16 A operating current for industrial power and control circuits.
- 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage for industrial operating conditions.
- Minimum 500 mating-cycle mechanical life supports repeated connection and disconnection.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- EMAS EB Series multipole connector insert.
- 16 male contacts numbered 1–16.
- Operating current of 16 A.
- Insulation voltage of 690 V.
- Impulse withstand voltage of 6 kV.
- AC-15 utilisation category.
- Minimum mechanical life of ≥500 operations.
- Pollution degree 2.
Reliable 16-Pole Connections for Industrial Equipment
Multipole connector inserts such as the EMAS EB016CF00 allow numerous electrical circuits to be combined into a single detachable industrial connection. This simplifies machinery installation and maintenance because the connector assembly can be separated without individually disconnecting each circuit from the equipment wiring.
The EB016CF00 is the male 1–16 insert within the EMAS 16-pole 16 A connector system and is designed to mate with the corresponding EB016CP00 female insert. Compatible EMAS hoods and housings provide the mechanical and environmental enclosure around the inserts, with suitable assemblies capable of providing IP65 protection in the closed position.
Typical Applications
- Industrial machinery and machine building.
- Automation and robotic equipment.
- Control panels and electrical cabinets.
- Production and processing equipment.
- Detachable power and control connections.
- Heavy-duty 16-pole multipole connector assemblies.
