Why Choose the EMAS EB016CP00 16-Pole Female Insert?

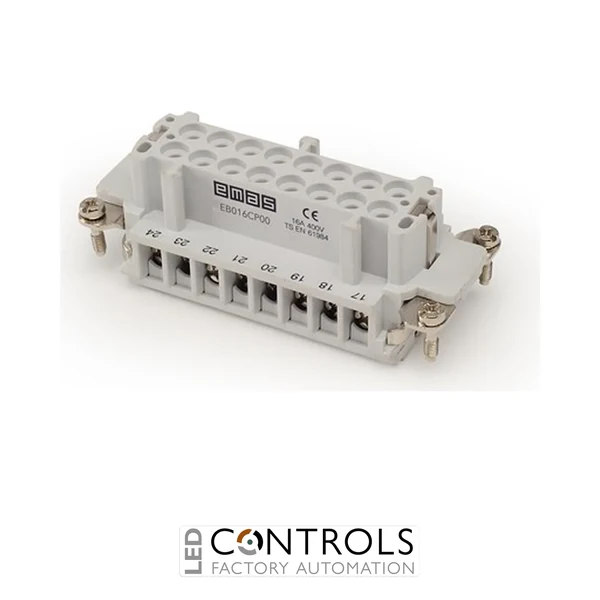

The EMAS EB016CP00 is a robust 16-pole female multipole connector insert designed for reliable power and control connections in industrial machinery, automation equipment and electrical installations. Part of the EMAS EB Series, this female insert provides a rated operating current of 16 A and is designed for use with compatible EMAS industrial connector housings and hoods.
The EB016CP00 provides 16 female contact positions numbered 1–16 and is engineered for repeated connection and disconnection in demanding industrial environments. Its electrical characteristics include a 690 V insulation voltage and 6 kV impulse withstand voltage, providing dependable insulation performance within correctly specified connector assemblies.
Designed in accordance with TS EN 61984, the insert offers a minimum mechanical life of 500 operations and operates across a wide temperature range of -40 to +125 °C. These characteristics make the EB016CP00 suitable for industrial connector systems requiring compact, durable and serviceable multipole connections.
Key Advantages
- Industrial 16-pole female connector insert for multipole applications.
- 16 A operating current for industrial power and control connections.
- 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage.
- Minimum 500-operation mechanical life for repeated mating cycles.
- Wide -40 to +125 °C operating temperature range.
Key Features
- EMAS EB Series industrial multipole connector insert.
- Female insert / insert socket configuration.
- 16 contact positions, numbered 1–16.
- 16 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC15 usage category.
- Minimum mechanical life of 500 operations.
- Designed to TS EN 61984.
Reliable Multipole Connections for Industrial Equipment
Multipole connector inserts allow numerous electrical circuits to be connected through a single compact industrial connector assembly. The EMAS EB016CP00 provides 16 female contact positions, helping simplify installation and maintenance where multiple power, control or signal conductors must be connected between machinery, panels and other equipment.
The EB Series is designed as a modular industrial connection system in which inserts are combined with compatible connector housings and hoods. The EB016CP00's robust electrical insulation characteristics, wide operating temperature range and repeated mating capability make it suitable for demanding factory automation and machine-building environments.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Electrical control panels.
- Production and packaging machinery.
- Material handling and conveyor systems.
- Multipole power and control connections.
