Why Choose the EMAS EB032CF00 32-Pole 16 A Male Insert?

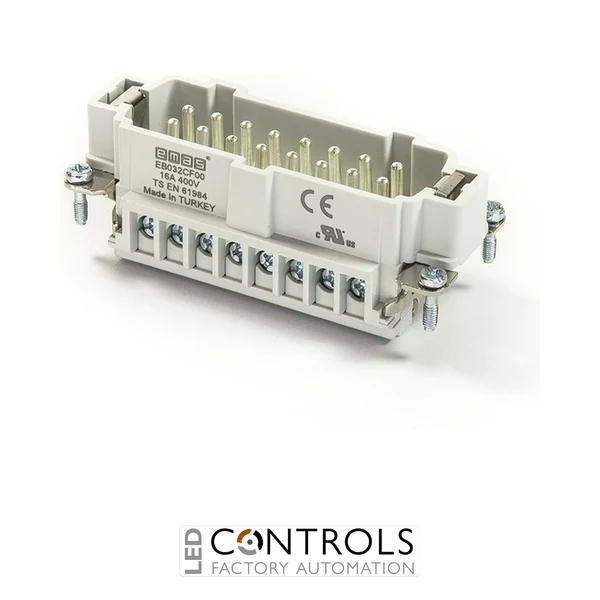

The EMAS EB032CF00 is a durable male multipole connector insert designed for 32-pole EMAS EBM heavy-duty connector assemblies used in industrial machinery, automation and electrical control systems. Part of the EMAS EB Series, this insert provides the male contact section numbered 17–32 for compatible 32-pole connector configurations.
With an operating current rating of 16 A, an insulation voltage of 690 V and an impulse withstand voltage of 6 kV, the EB032CF00 provides reliable electrical connectivity in demanding industrial installations. Its screw-terminal connection system enables secure conductor termination while simplifying assembly, servicing and replacement.
The EB032CF00 is designed for use alongside the corresponding 1–16 contact insert within a complete 32-pole EBM connector arrangement. With a wide operating temperature range of -40 °C to +125 °C and construction to TS EN 61984, it provides a dependable solution for machine builders, panel builders and industrial automation engineers.
Key Advantages
- Male insert designed for 32-pole EMAS EBM connector assemblies.
- Provides contacts 17–32 within the complete 32-pole configuration.
- 16 A operating current for industrial power and control connections.
- 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage.
- Screw-terminal design supports secure and straightforward conductor termination.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- EMAS EB Series multipole connector insert.
- Male / plug insert for 32-pole EBM connector systems.
- Contact positions 17–32.
- 16 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC15 usage category.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Designed in accordance with TS EN 61984.
Reliable Multipole Connectivity for Industrial Equipment
Multipole connector inserts such as the EMAS EB032CF00 allow numerous electrical circuits to be grouped within a robust heavy-duty connector assembly. This simplifies the installation and removal of industrial machinery while providing an organised connection interface for power, control and signalling circuits.
Within a complete 32-pole EBM configuration, the EB032CF00 provides the male contact positions numbered 17–32 and is used with the appropriate complementary insert and compatible EMAS EBM housing components. This modular arrangement makes the connector system particularly suitable for machine building, panel construction and industrial automation applications where convenient installation and maintenance are important.
Typical Applications
- Industrial machinery and automation systems.
- Electrical control panels and equipment.
- Machine-to-machine electrical connections.
- Production and manufacturing machinery.
- Material handling and conveyor systems.
- OEM machinery and machine building.
