Why Choose the EMAS EB048CF00 EBM 48-Pole Male Insert?

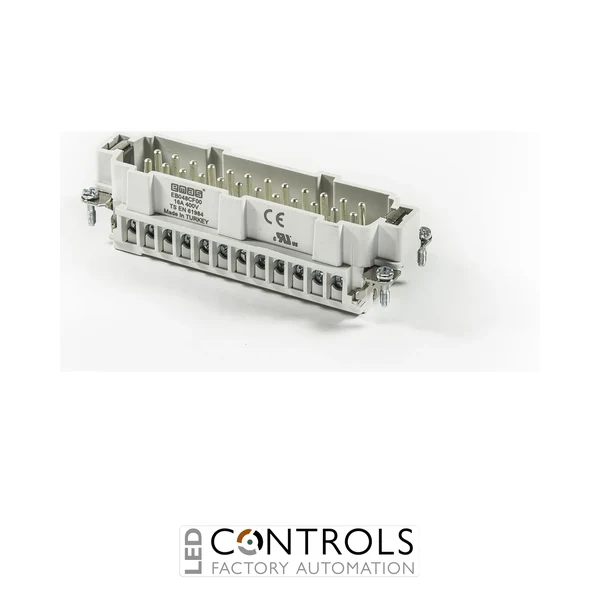

The EMAS EB048CF00 is a male multipole connector insert from the EMAS EB Series, designed for use within 48-pole, 16 A EBM industrial connector assemblies. It provides the male contact section for positions 25–48, working alongside the corresponding EB024CF00 insert for positions 1–24 to form the complete 48-pole male connection arrangement.
Rated at 16 A with a 690 V insulation voltage (Ui) and 6 kV impulse withstand voltage (Uimp), the EB048CF00 is engineered for reliable multi-circuit connections in machinery, automation and industrial control equipment. Screw connection terminals support straightforward conductor termination, while captive screws help simplify assembly and servicing.
Designed in accordance with TS EN 61984, the EB048CF00 offers a minimum mechanical durability of 500 mating cycles and operates across a wide -40 °C to +125 °C temperature range. When combined with the appropriate mating female insert and compatible EMAS EBM enclosure, it provides a robust detachable connection for complex industrial wiring systems.
Key Advantages
- Designed for 48-pole EBM industrial connector assemblies.
- Provides male contact positions 25–48.
- 16 A current rating for industrial multipole circuits.
- 690 V insulation voltage and 6 kV impulse withstand voltage.
- Minimum 500 mating-cycle mechanical durability.
- Wide -40 °C to +125 °C operating temperature range.
- Screw termination with captive screws supports straightforward installation and maintenance.
Key Features
- EMAS EB / EBM Series.
- Male insert / plug insert.
- For 48-pole connector systems.
- Contact positions 25–48.
- 16 A rated current.
- 690 V rated insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC-15 utilisation category.
- Minimum 500 mechanical operations.
- Minimum 100 electrical operations.
- 10 MΩ minimum insulation resistance at 500 V DC.
- Designed to TS EN 61984.
Reliable 48-Pole Connections for Industrial Equipment
High-pole-count industrial connectors allow numerous electrical circuits to be grouped into a single detachable interface, simplifying machine installation, maintenance and module replacement. Within the EMAS 48-pole system, the EB048CF00 provides male positions 25–48, while the EB024CF00 provides positions 1–24. Together they form the male insert arrangement required for the complete 48-pole connector.
The EB048CF00 combines a 16 A current rating, high insulation performance and robust mechanical durability with a wide operating temperature range. Installed inside the appropriate EMAS EBM hood or housing and paired with the corresponding female inserts, it provides a dependable multipole connection system for industrial machinery and automation equipment.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control panels and machine interfaces.
- Conveyor and material handling systems.
- Process and manufacturing equipment.
- OEM machinery requiring high-density detachable electrical connections.
