Why Choose the EMAS EB0606CF00 EBM 6 Pole 35 A Male Insert?

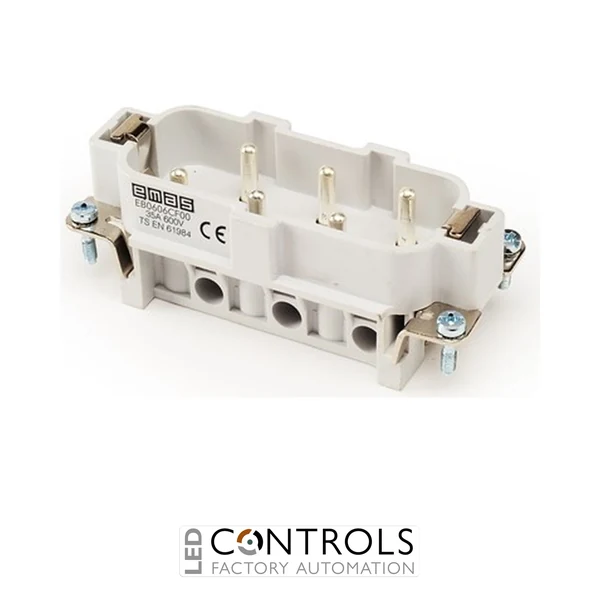

The EMAS EB0606CF00 is a robust 6-pole male multipole connector insert designed for reliable electrical connections in industrial machinery, automation equipment and control systems. Part of the EMAS EB Series and used within EBM industrial connector assemblies, this insert plug provides six contacts identified from 1–6 for organised and detachable industrial wiring.
With an operating current of 35 A, an insulation voltage of 690 V and an impulse withstand voltage of 6 kV, the EB0606CF00 is engineered for demanding industrial connection duties. Its multipole design allows multiple conductors to be connected or disconnected together, helping simplify equipment assembly, commissioning and maintenance.
The EB0606CF00 is designed in accordance with TS EN 61984 and has an operating temperature range of -40 to +125 °C. It can be combined with compatible EMAS EBM hoods and housings to create complete industrial connector assemblies, with the associated 6-pole 35 A EBM configuration using a PG21 cable entry.
Key Advantages
- Heavy-duty 6-pole male multipole connector insert for industrial applications.
- 35 A operating current for higher-current connection requirements.
- 690 V insulation voltage for dependable electrical isolation.
- 6 kV impulse withstand voltage for robust industrial performance.
- Wide -40 to +125 °C operating temperature range.
- Minimum 500-cycle mechanical life supports repeated connection and disconnection.
Key Features
- EMAS EB Series multipole connector insert.
- 6-pole male insert plug configuration.
- Contacts identified 1–6.
- 35 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC-15 utilisation category.
- Pollution degree 3.
- Designed in accordance with TS EN 61984.
Multipole connector inserts such as the EMAS EB0606CF00 allow several electrical circuits to be routed through one detachable industrial connector assembly. The 35 A current capability makes this insert particularly suitable for applications requiring a more substantial electrical connection than lower-current multipole control connectors.
When combined with a compatible EMAS EBM hood or housing and the corresponding female insert, the EB0606CF00 forms part of a robust industrial connection system. This modular approach can simplify machine installation, servicing and replacement while providing an organised connection interface for industrial equipment.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Higher-current multipole equipment connections.
- Modular machinery requiring detachable electrical interfaces.
- Industrial power and control connection systems.
