Why Choose the EMAS EB0612CF00 EBM Male Insert?

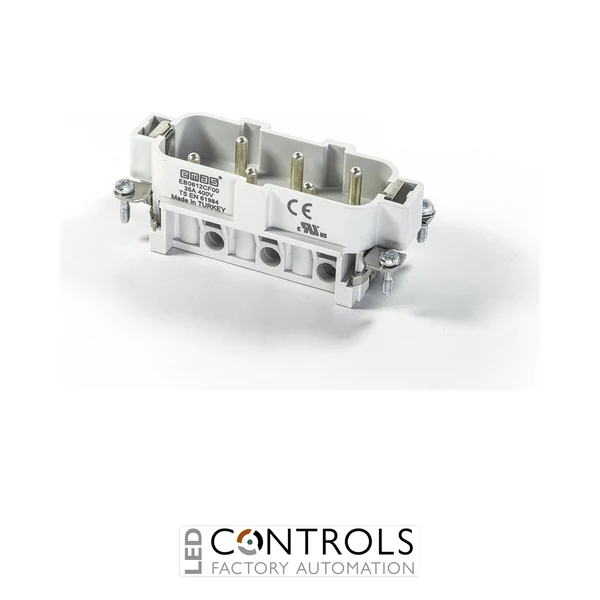

The EMAS EB0612CF00 is a heavy-duty 6-contact male industrial connector insert rated at 35 A, designed as the 7–12 contact section of an EMAS 12-pole EBM connector assembly. It provides a reliable detachable electrical interface for industrial machinery, automation equipment and higher-current power and control connections.
As part of the EMAS EB Series multipole connector system, the EB0612CF00 carries contact positions 7–12 and complements the EB0606CF00 male insert covering positions 1–6 in a complete 12-pole arrangement. This modular configuration allows multiple higher-current circuits to be connected and disconnected through a robust industrial connector assembly.
With a rated operating current of 35 A, an insulation voltage of 690 V and an impulse withstand voltage of 6 kV, the EB0612CF00 is engineered for demanding industrial electrical applications. It operates across a wide -40 °C to +125 °C temperature range and is manufactured to TS EN 61984 requirements.
Key Advantages
- Heavy-duty 35 A industrial multipole connector insert.
- Male insert covering contact positions 7–12 of a 12-pole connector arrangement.
- 6 contact positions within the individual insert.
- 690 V insulation voltage for demanding industrial electrical systems.
- 6 kV impulse withstand voltage.
- Wide -40 °C to +125 °C operating temperature range.
- Modular design simplifies equipment installation, servicing and replacement.
Key Features
- EMAS EB Series multipole insert plug.
- 6 contacts numbered 7–12.
- Designed for the 12-pole, 35 A EBM connector configuration.
- 35 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- AC-15 utilisation category.
- Minimum mechanical life of 500 operations.
- Minimum electrical life of 100 operations.
- Pollution degree 3.
- Designed to mate with the corresponding EB0612CP00 female insert.
Reliable Higher-Current Multipole Connectivity
Heavy-duty multipole connectors allow several power and control circuits to be connected or disconnected simultaneously through one industrial connector assembly. This modular approach can simplify installation and maintenance while providing an organised interface between machinery, control cabinets and removable equipment.
The EMAS EB0612CF00 provides contact positions 7–12 of the 12-pole 35 A EBM arrangement. Used with the appropriate complementary insert and compatible EMAS hood or housing, it forms part of a robust connector solution suitable for higher-current industrial electrical systems.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical power and control panels.
- Conveyor and material handling machinery.
- Motor and industrial equipment connections.
- OEM machinery requiring detachable higher-current multipole connections.
