Why Choose the EMAS EB0806CP00 6-Pole Female Insert?

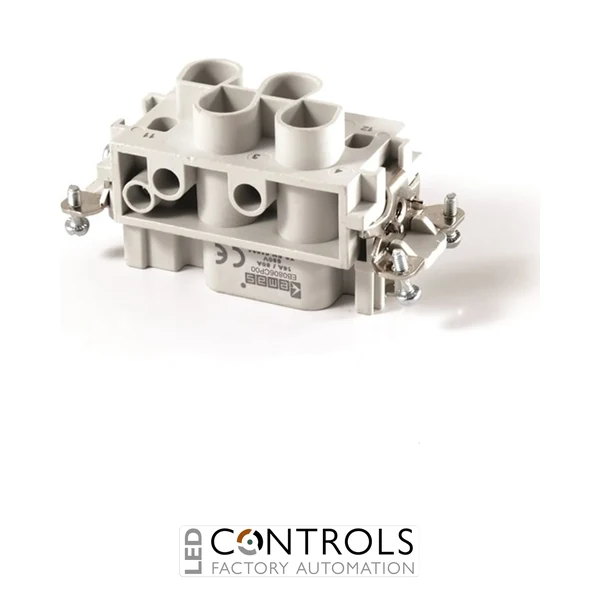

The EMAS EB0806CP00 is a specialised 6-pole female multipole connector insert designed for industrial applications requiring a combination of high-current power contacts and lower-current auxiliary connections. Part of the EMAS EB Series, the insert combines 4 × 80 A contacts and 2 × 16 A contacts within a single compact heavy-duty connector system.
This mixed-current configuration makes the EB0806CP00 particularly useful for machinery and automation equipment where high-current power circuits and auxiliary or control circuits need to be connected through the same detachable interface. The insert provides six female contacts numbered 1–6 and is designed to mate with the corresponding EMAS EB0806CF00 male insert.
Manufactured in accordance with TS EN 61984, the EB0806CP00 features an insulation voltage of 690 V, impulse withstand voltage of 6 kV and insulation resistance of at least 10 MΩ at 500 V DC. With a minimum mechanical life of 500 mating cycles and an operating temperature range from -40 °C to +125 °C, it is engineered for dependable service in demanding industrial environments.
Key Advantages
- Mixed-current 6-pole configuration combines power and auxiliary contacts in one connector insert.
- Provides 4 × 80 A and 2 × 16 A contacts.
- Female insert designed to mate with the corresponding EB0806CF00 male insert.
- 690 V insulation voltage and 6 kV impulse withstand voltage.
- Minimum 500 mating-cycle mechanical life supports serviceable industrial connections.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- EMAS EB Series multipole connector insert.
- 6 female contacts numbered 1–6.
- 4 × 80 A + 2 × 16 A operating-current configuration.
- Insulation voltage of 690 V.
- Impulse withstand voltage of 6 kV.
- AC-15 utilisation category.
- Pollution degree 3.
- Compatible with the EMAS 6-pole 4 × 80 A + 2 × 16 A heavy-duty connector system.
Mixed-Current Connectivity for Industrial Equipment
The EMAS EB0806CP00 is designed for applications where both high-current power and lower-current auxiliary circuits need to pass through a single detachable connector. Four 80 A contacts can accommodate higher-current circuits, while the additional two 16 A contacts provide connections for suitable auxiliary functions, reducing the need for separate connector assemblies.
When installed in compatible EMAS hoods and housings, the EB0806CP00 becomes part of a heavy-duty industrial connector system that can simplify equipment installation, maintenance and replacement. The matching EB0806CF00 male insert forms the opposite half of the six-pole connection, while compatible EMAS enclosures provide the mechanical and environmental protection required by the finished assembly.
Typical Applications
- Industrial machinery and machine building.
- Motor and high-current equipment connections.
- Automation and robotic equipment.
- Production and processing machinery.
- Combined power and auxiliary circuit connections.
- Heavy-duty detachable industrial connector assemblies.
