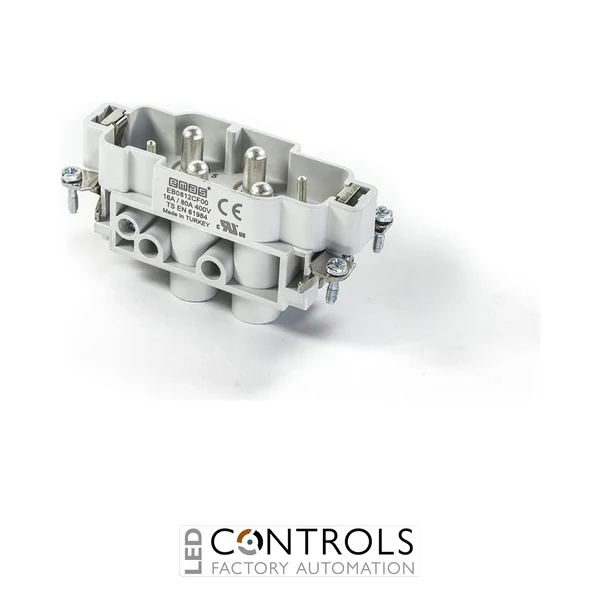

Why Choose the EMAS EB0812CF00 6-Contact Male Insert?
The EMAS EB0812CF00 is a specialised 6-contact male multipole connector insert designed as the 7–12 contact section of an EMAS 12-pole heavy-duty connector assembly. Part of the EMAS EB Series, it combines 4 × 80 A power contacts and 2 × 16 A auxiliary contacts, allowing high-current and lower-current circuits to be carried through the same industrial connector system.
For a complete 12-pole 2 × (4 × 80 A + 2 × 16 A) arrangement, the EB0812CF00 is used alongside the EB0806CF00 male insert for positions 1–6. The EB0812CF00 itself carries positions 7–12, providing the second six-contact section of the 12-pole connector configuration.
Manufactured to TS EN 61984, the EB0812CF00 has an insulation voltage of 690 V, impulse withstand voltage of 6 kV and insulation resistance of at least 10 MΩ at 500 V DC. A minimum mechanical life of 500 mating operations makes it a dependable choice for serviceable industrial power and control connections.
Key Advantages
- Forms the 7–12 section of a 12-pole mixed-current connector assembly.
- Combines 4 × 80 A power contacts and 2 × 16 A auxiliary contacts.
- Male insert designed to mate with the corresponding EB0812CP00 female insert.
- Can be combined with EB0806CF00 to create the male side of the full 12-pole arrangement.
- 690 V insulation voltage with 6 kV impulse withstand capability.
- Minimum 500-operation mechanical life supports repeated connection and disconnection.
Key Features
- EMAS EB Series multipole connector insert.
- 6 male contacts representing positions 7–12.
- Designed for a complete 12-pole, 2 × (4 × 80 A + 2 × 16 A) connector system.
- Contact configuration of 4 × 80 A + 2 × 16 A.
- Insulation voltage of 690 V.
- Impulse withstand voltage of 6 kV.
- AC-15 utilisation category.
- Manufactured to TS EN 61984.
12-Pole Mixed-Current Connectivity for Industrial Equipment
The EMAS 12-pole mixed-current connector system uses two six-contact inserts to provide a total of 8 × 80 A power contacts and 4 × 16 A auxiliary contacts. The EB0806CF00 provides positions 1–6, while the EB0812CF00 provides positions 7–12. This modular arrangement allows substantial power and auxiliary circuits to be combined within one heavy-duty connector assembly.
The EB0812CF00 mates with the EB0812CP00 female insert for positions 7–12. When combined with the appropriate first insert and installed within compatible EMAS EBM hoods and housings, the system provides a serviceable detachable connection for machinery and industrial equipment. Compatible complete enclosure assemblies can achieve IP65 protection when correctly assembled with a suitable cable gland.
Typical Applications
- Industrial machinery and machine building.
- High-current motor and equipment connections.
- Automation and robotic systems.
- Production and processing machinery.
- Combined high-current power and auxiliary circuits.
- Heavy-duty 12-pole detachable connector assemblies.
