Why Choose the EMAS EB0812CP00 Mixed-Current Female Insert?

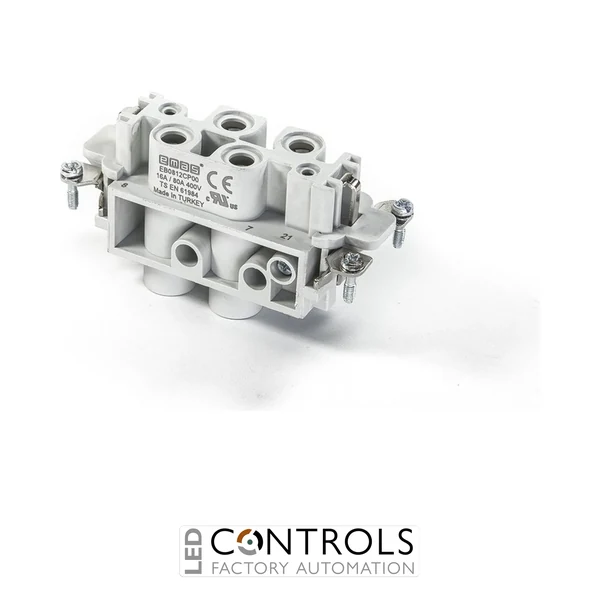

The EMAS EB0812CP00 is a heavy-duty female multipole connector insert designed for industrial applications requiring both high-current power connections and lower-current auxiliary circuits within the same connector system. Part of the EMAS EB / EBM multipole connector system, this insert provides the second six contact positions, 7–12, within the manufacturer's 12-pole mixed-current arrangement.
The EB0812CP00 features a mixed contact configuration of 4 × 80 A + 2 × 16 A. When paired with the corresponding 1–6 insert, the complete 12-pole system provides 2 × (4 × 80 A + 2 × 16 A), allowing high-current power and auxiliary electrical circuits to be combined within one robust industrial connector assembly.
Designed for compatible EMAS EBM hoods and housings, the EB0812CP00 provides a practical modular solution for machinery, automation and industrial equipment. The associated 12-pole connector system uses Pg21 cable entry housings, with IP65 protection available when the complete assembly is correctly installed with an appropriate cable gland.
Key Advantages
- Heavy-duty female multipole connector insert for industrial equipment.
- Mixed-current configuration with 4 × 80 A and 2 × 16 A contacts.
- Provides contact positions 7–12 within the 12-pole EBM system.
- Combines high-current power and auxiliary circuits within a modular connector arrangement.
- Compatible with corresponding EMAS EBM industrial connector hoods and housings.
- Supports IP65 connector assemblies when installed with the appropriate housing and cable gland.
Key Features
- EMAS EB / EBM multipole connector system.
- Female insert / insert socket configuration.
- 6 contact positions, numbered 7–12.
- 4 × 80 A high-current contacts.
- 2 × 16 A auxiliary contacts.
- Forms part of a 12-pole, 2 × (4 × 80 A + 2 × 16 A) connector arrangement.
- Designed for compatible industrial connector housings and hoods.
- Suitable for combined power and control connections in industrial machinery.
High-Current and Auxiliary Connections in One System
Mixed-current multipole connectors allow high-power conductors and lower-current auxiliary circuits to be incorporated into the same detachable industrial connection. The EMAS EB0812CP00 provides four 80 A and two 16 A female contact positions, reducing the need for separate connector systems and helping simplify machine installation and maintenance.
The EB0812CP00 represents positions 7–12 of the complete 12-pole arrangement and is designed to work alongside the corresponding positions 1–6 insert. This modular configuration is particularly useful for machinery requiring substantial power connections together with control, auxiliary or other lower-current circuits.
Typical Applications
- Heavy industrial machinery and machine tools.
- Factory automation and production equipment.
- High-current motor and equipment connections.
- Material handling and conveyor systems.
- Industrial control and power distribution equipment.
- OEM machinery requiring combined power and auxiliary circuits.
