Why Choose the EMAS EBM04FE46 4-Pole Angled Type Plug?

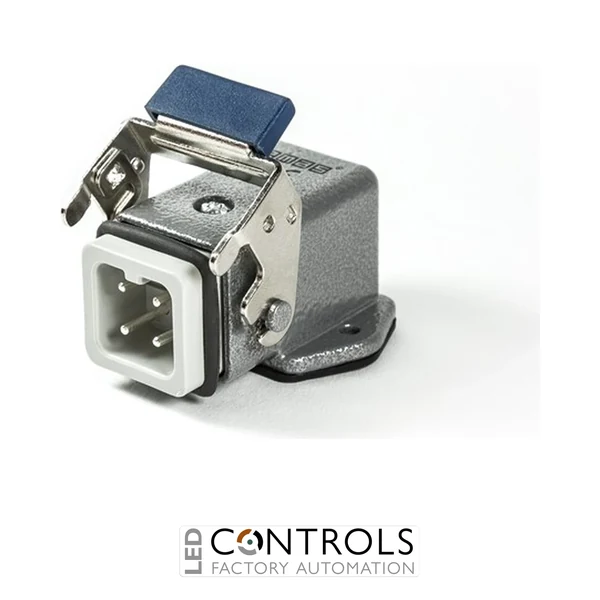

The EMAS EBM04FE46 is a robust 4-pole angled type industrial plug with male insert designed for dependable multipole electrical connections in machinery, automation equipment and industrial control systems. Part of the EMAS EBM Series, it combines a powder-coated metal housing, male insert and secure metal locking mechanism within one compact connector assembly.
The EBM04FE46 provides 4 poles rated at 10 A and features a bottom-entry angled housing with one metal handle. Its integrated male insert enables straightforward connection with a compatible female connector assembly, while the angled format is particularly useful where cable routing or installation space makes a straight connector less convenient.
Designed to TS EN 61984, the EBM04FE46 has an insulation voltage of 690 V, impulse withstand voltage of 6 kV and an operating temperature range of -40 to +125 °C. The connector provides IP65 protection in the closed position when correctly assembled with an appropriate cable gland, making it suitable for demanding industrial environments.
Key Advantages
- Complete 4-pole angled plug with male insert for industrial multipole connections.
- 10 A operating current for compatible power and control circuits.
- Durable powder-coated metal housing for industrial environments.
- Bottom cable entry and angled construction support practical cable routing.
- Single metal handle provides secure connector locking.
- IP65 protection in the closed position when correctly installed with an appropriate cable gland.
Key Features
- EMAS EBM Series industrial multipole connector.
- Angled type plug with integrated male insert.
- 4-pole contact configuration.
- 10 A operating current.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Bottom-entry housing configuration.
- One metal handle locking system.
- Metal body with powder-coated construction.
- Minimum 500-operation mechanical life.
- Designed to TS EN 61984.
Reliable Industrial Multipole Connections
Industrial multipole connectors allow several electrical conductors to be connected and disconnected through a single robust interface. The EMAS EBM04FE46 combines its four-pole male insert and metal angled housing into a practical assembly that simplifies installation, servicing and equipment replacement in industrial machinery.
The bottom-entry configuration helps route the incoming cable neatly into the connector, while the metal locking handle maintains secure mechanical coupling with a compatible mating connector. Its robust metal construction, wide operating temperature range and IP65 protection when correctly assembled make the EBM04FE46 suitable for demanding factory and machine-building environments.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation equipment.
- Electrical control panels and cabinets.
- Packaging and production machinery.
- Material handling and conveyor equipment.
- OEM machinery requiring detachable multipole connections.
