Why Choose the EMAS EBM04PU10 4 Pole 10 A Side Entry Socket with Female Insert?

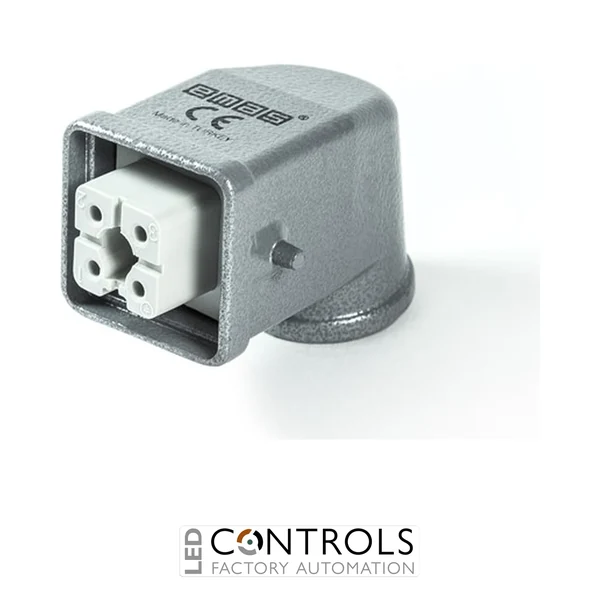

The EMAS EBM04PU10 is a robust 4-pole extension-type industrial socket with female insert designed for reliable multipole electrical connections in machinery, automation equipment and control systems. Part of the EMAS EBM metal connector series, it combines the female insert and durable metal hood in a convenient side-entry configuration.
With an operating current of 10 A, insulation voltage of 690 V and impulse withstand voltage of 6 kV, the EBM04PU10 provides dependable electrical performance for demanding industrial installations. Its IP65 protection rating when correctly assembled with an appropriate cable gland helps protect the connection against dust and water ingress.
The EBM04PU10 features a powder-coated metal housing, four contacts and a side-entry cable arrangement. The 4-pole 10 A EBM configuration is associated with a PG11 cable entry, providing a compact and practical connection solution for machine builders, panel builders and industrial automation engineers.
Key Advantages
- Complete 4-pole extension-type socket with female insert.
- 10 A operating current for industrial connection applications.
- Durable powder-coated metal housing for demanding environments.
- Side-entry configuration supports practical cable routing.
- IP65 protection in the closed position when assembled with an appropriate cable gland.
- 690 V insulation voltage and 6 kV impulse withstand voltage.
Key Features
- EMAS EBM Series industrial multipole connector.
- 4-pole female socket configuration.
- 10 A operating current.
- Extension-type socket design.
- Side-entry cable arrangement.
- Metal body with powder-coated housing.
- 690 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Designed in accordance with TS EN 61984.
Industrial multipole connectors such as the EMAS EBM04PU10 allow several electrical conductors to be connected through one detachable interface. This helps simplify machinery installation, commissioning and servicing by allowing complete cable connections to be disconnected without individually removing each conductor.
The EBM04PU10 combines a female insert with a durable metal extension-type housing and side cable entry. Its high insulation performance, broad operating temperature range and IP65 protection when correctly assembled make it well suited to industrial machinery and automation installations requiring dependable removable connections.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control panels and cabinets.
- Machine building and OEM equipment.
- Modular machinery and detachable equipment connections.
- Industrial control and instrumentation wiring.
- Manufacturing equipment requiring robust multipole connections.
