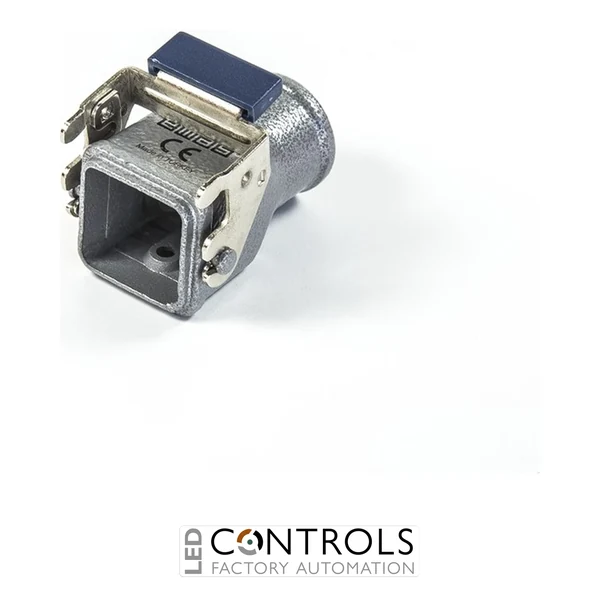

Why Choose the EMAS EBM05GU36 EBM 5-Pole Hood?
The EMAS EBM05GU36 is a durable 5-pole extension-type empty hood from the EMAS EBM metal industrial multipole connector range. Designed for the 5-pole 10 A connector system, it provides a robust enclosure for compatible inserts used in machinery, automation and industrial control applications.
The EBM05GU36 features a top cable entry and one metal locking handle, providing convenient cable routing together with secure mechanical locking when connected to a compatible mating component. Its powder-coated metal construction is designed to withstand the mechanical demands associated with industrial installations.
When correctly assembled and closed with compatible components and an appropriate cable gland, the EBM05GU36 provides IP65 protection. A minimum mechanical life of 500 operations and an operating temperature range of -40 °C to +125 °C make it a versatile enclosure for dependable multipole connector installations.
Key Advantages
- Designed for the EMAS EBM 5-pole 10 A connector system.
- Top-entry configuration supports straightforward cable routing.
- Single metal locking handle provides secure connector engagement.
- Durable powder-coated metal housing for industrial environments.
- IP65 protection when correctly assembled, closed and fitted with an appropriate cable gland.
- Minimum mechanical life of 500 operations.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- EMAS EBM Series industrial multipole connector hood.
- 5-pole connector format.
- Designed for the 10 A EBM connector system.
- Extension-type empty hood.
- Top cable entry.
- 1 metal locking handle.
- Metal body construction.
- Powder-coated housing finish.
- IP65 protection degree when correctly assembled and closed.
- Compatible with universal inserts from the corresponding EBM format.
- Designed for easy industrial connector cabling and assembly.
Robust Protection for Industrial Multipole Connections
A connector hood protects the insert and conductor terminations while providing the mechanical interface required for a complete industrial multipole connector assembly. The extension-type format is particularly useful for cable-to-cable or removable equipment connections where a cable-mounted enclosure is required.
The EMAS EBM05GU36 combines a top-entry metal body with a robust metal locking handle, making it suitable for installations where secure mating, convenient cable routing and durable connector protection are important. Compatible male or female inserts are selected separately according to the required electrical connection.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation systems.
- Electrical control and machine wiring.
- Conveyor and material handling equipment.
- Detachable cable and equipment connections.
- OEM machinery using EMAS EBM multipole connectors.
